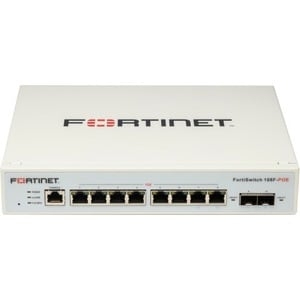

Fortinet FortiSwitch 108F-POE 8 Ports Manageable Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - 74.40 W Power Consumption - 65 W PoE Budget - Optical Fiber, Twisted Pair FS-

SKU
390588
Brand
MPN
FS-108F-POE
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,058.00
Buy Now And Earn 1058 Reward Points!

Fortinet FortiSwitch 108F-POE 8 Ports Manageable Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - 74.40 W Power Consumption - 65 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Desktop, Rack-mountable - Lifetime Limited Warranty

Security, Performance, and Manageability

The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.

Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.

Security Fabric Integration through FortiLink

FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.

HIGHLIGHTS | Entry | 100 Series
  • Entry level switch
  • 8-48 GE ports, PoE+ capable
  • Desktop to wiring closet
  • 2-4 GE SFP uplink ports
  • 4x 10GE SFP+ uplink ports

Mid-Range | 200 Series

  • Mid-level switch
  • 24-48 GE ports, PoE+ capable
  • Typical wiring closet switch
  • 4 GE SFP uplink ports

Premium | 400 Series

  • Enterprise switch
  • 24-48 GE and Multi-Gig port options, PoE+ and UPOE options
  • Larger wiring closet or high throughput requirements
  • 4x 10 GE SFP+ uplink ports

Aggregation | 500 Series

  • Aggregation switch
  • 24-48 GE ports, PoE+ capable
  • Larger wiring closet or high throughput requirements
  • 4x 10 GE SFP+ and 2x 40 GE QSFP uplink ports
DEPLOYMENT | FortiLink
  • FortiGate managed
  • Security Fabric enabled
  • Most common deployment model

Standalone

  • Industry standard deployment model
  • Common in non-FortiGate environments
Cloud Management for both deployment options available through FortiCloud

Management & Protocols
Manageable Yes
Warranty
Limited Warranty Lifetime
I/O Expansions
Expansion Slot Type SFP (mini-GBIC)
Number of Total Expansion Slots 2
Number of SFP Slots 2
Miscellaneous
Certifications & Standards
    • FCC
    • CE
    • RCM
    • VCCI
    • BSMI
    • UL
    • CB
Environmentally Friendly Yes
Environmental Certification RoHS 2
Media & Performance
Network Technology 10/100/1000Base-T
1000Base-X
Ethernet Technology Gigabit Ethernet
Media Type Supported Optical Fiber
Twisted Pair
Network & Communication
Layer Supported 2
Networking Standards IEEE 802.1AX
IEEE 802.3at
IEEE 802.1ab
IEEE 802.1p
IEEE 802.1w
IEEE 802.3u
IEEE 802.1ad
IEEE 802.1s
IEEE 802.3af
IEEE 802.3ad
IEEE 802.1Q
IEEE 802.1x
IEEE 802.3ab
IEEE 802.3z
IEEE 802.1Qbb
IEEE 802.3az
IEEE 802.3
IEEE 802.1D
IEEE 802.3x
Interfaces/Ports
Network (RJ-45) Yes
Modular Yes
Uplink Port Yes
Total Number of Network Ports 8
Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot
8 x Gigabit Ethernet PoE+
Physical Characteristics
Weight (Approximate) 1.70 kg
Form Factor Desktop
Rack-mountable
Height 43.9 mm
Width 250.2 mm
Depth 209 mm
Compatible Rack Unit 1U
General Information
Product Type Ethernet Switch
Manufacturer Part Number FS-108F-POE
Manufacturer Website Address http://www.fortinet.com
Manufacturer Fortinet, Inc
Product Model 108F-POE
Product Name FortiSwitch 108F-POE Ethernet Switch
Product Line FortiSwitch
Brand Name Fortinet
Power Description
Input Voltage 120 V AC
230 V AC
Power Source Power Supply
Frequency 50 Hz
60 Hz
Power Consumption 74.40 W
PoE (RJ-45) Port Yes
Redundant Power Supply Supported No
PoE Budget 65 W
