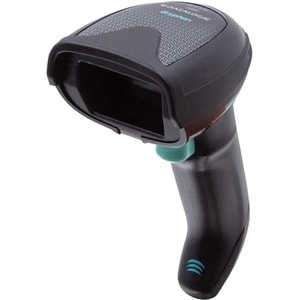

Datalogic GRYPHON GBT4500 KIT USB BLACKINCL SCANNER BASE AND USB CABLE GBT4500-BK-BTK1

SKU
375256
Brand
MPN
GBT4500-BK-BTK1
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,232.00
Buy Now And Earn 1232 Reward Points!

IMAGING TECHNOLOGY

The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

WIRELESS COMMUNICATIONS

Featuring Bluetooth® wireless technology (GBT model) or narrow band radio communications with Datalogic's STAR Cordless System™ (GM model), the Gryphon 4500 wireless readers provide maximum flexibility to solve any end user application with the best technical solution.

WIRELESS CHARGING

One of the most important technical innovations that the Gryphon 4500 wireless scanners achieve is the battery recharge through an inductive charging system, which enhances the reliability of the entire solution, lowering the total cost of ownership because it eliminates the need for contacts' cleaning and maintenance procedures. The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.

SIMPLE TO USE AND DEPLOY

The Gryphon I 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.

Datalogic's Motionix™ motion-sensing technology enables the scanner to intuitively switch into hand held mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it's charging.

Interfaces/Ports
Host Interface USB
Network & Communication
Bluetooth Yes
Physical Characteristics
Weight (Approximate) 235 g
Colour Black
Form Factor Handheld
Height 109 mm
Width 68 mm
Depth 166 mm
Technical Information
Barcode Symbology Supported 1D:
      • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:
      • Aztec Code
      • China Han Xin Code
      • Data Matrix
      • MaxiCode
      • Micro QR Code
      • QR Code
Postal codes:
      • Australian Post
      • British Post
      • China Post
      • IMB
      • Japanese Post
      • KIX Post
      • Planet Code
      • Postnet
      • Royal Mail Code (RM4SCC)
Stacked codes:
      • EAN/JAN Composites
      • GS1 DataBar Composites
      • GS1 DataBar Expanded Stacked
      • GS1 DataBar Stacked
      • GS1 DataBar Stacked Omnidirectional
      • MacroPDF
      • MicroPDF417
      • PDF417
      • UPC A/E Composites
Digital Watermarking:
    • Digimarc Barcodes
Connectivity Technology Wireless
Image Formats BMP
TIFF
JPEG
Scanner Range Standard Range
Drop Specification Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Scan Pattern Single Line
Image Sensor Type Imager
Cable Type Included USB
Scanning Capability 1D
2D
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 889 mm/s
Maximum Ambient Light 100000 lux
Minimum Print Contrast 15%
Miscellaneous
Application/Usage Retail
Healthcare
Transportation
Industrial
Country of Origin Vietnam
Environmentally Friendly Yes
Ingress Protection (IP) Rating IP52
General Information
Product Type Barcode Scanner
Manufacturer Part Number GBT4500-BK-BTK1
Manufacturer Website Address http://www.datalogic.com
Packaged Quantity 3
Manufacturer Datalogic S.p.A
Product Model GBT4500
Product Name Gryphon GBT4500 Handheld Barcode Scanner
Product Line Gryphon
Product Series 4500
Brand Name Datalogic
