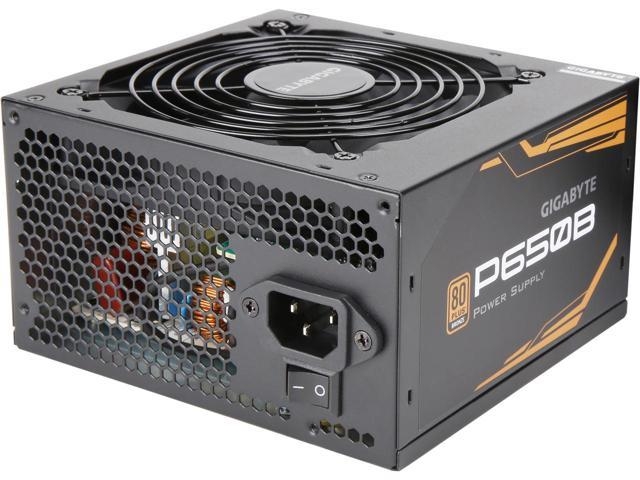

Gigabyte P650B Power Supply 80 Plus Bronze 3Yr Wty Gp-P650B-Ms

SKU
275777
Brand
Gigabyte
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
Add to Compare

GIGABYTE P650B Power Supply

The P650B is a 650W power supply built for powerful desktops. Certified for 80 Plus Bronze standard, it has a maximum efficiency of 89% for reduced power waste and less noise. The single +12V rail provides stable, robust power output for high-end graphics card. It’s equipped with a 120MM hydraulic bearing fan that operates quietly and has long lifespan. The P650B also features 100% Japanese capacitors to ensure outstanding reliability.

FEATURES

80 Plus Bronze Certified

80 Plus Bronze certified ensures better power efficiency and less power waste, which helps reduce the heat and fan noise. P650B can have up to 89% efficiency.

　

Reliable Mesh Braided Cable

P650B provides the best solution for the system builds. The mesh braided cable reduces clutter and improves airflow in the case.

　

100% Japanese Capacitors

All capacitors are high quality Japanese capacitors, to produce efficient performance and to ensure longer reliability.

　

Single +12V Rail

Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation.

　

120mm Hydraulic Bearing (HYB) Fan

120mm Hydraulic Bearing fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer lifespan.

Dimensions
  • Model
    P650B
  • Type
    Intel Form Factor ATX 12V v2.31
  • PFC
    Active PFC (>0.9 typical)
  • Input Voltage
    100-240 Vac (full range)
  • Input Current
    9A-4A
  • Input Frequency
    50-60 Hz
  • Output Capacity
    650W
  • Dimension
    D150 x W140 x H86 mm
  • Fan Type
    120mm Hydraulic Bearing Fan
  • Efficiency
    Up to 85% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OPP/UVP/OVP/SCP/OCP
  • Regulatory
    CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
  • Connectors
    ATX/MB 20+4 Pin x 1
    CPU/EPS 4+4 Pin x 1
    PCI-e 6+2 Pin x 4, SATA x 6
    4 Pin Peripheral x 3
    4 Pin Floppy x 1
