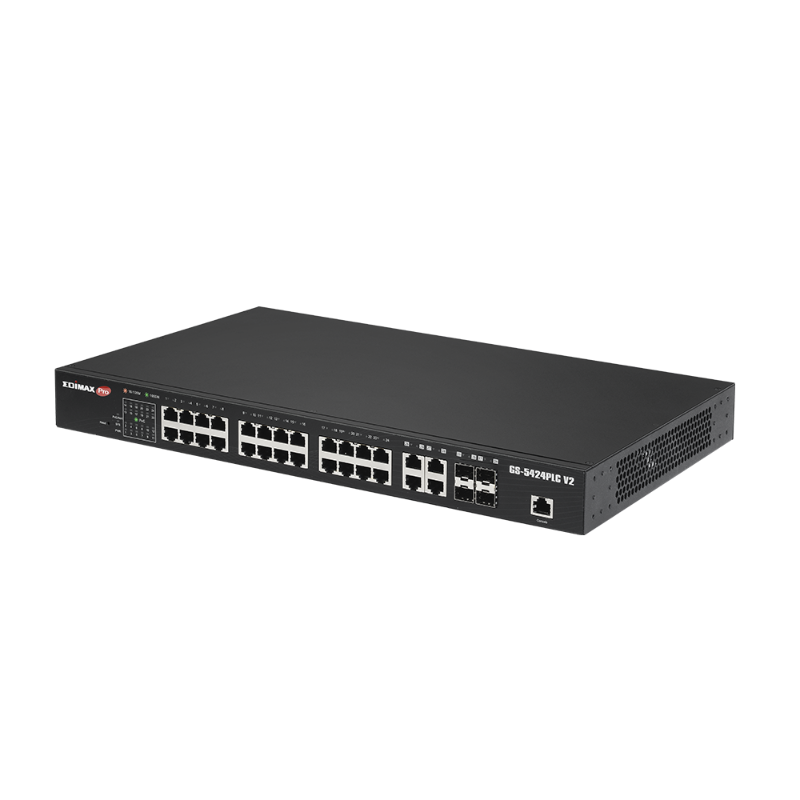

Edimax POE Switch: 28-Port Gigabit WebSmart Switch 24 PoE+ + 4 Giga-SFP Combo (400W) - Onvif-Q Surveillance GS-5424PLC V2
SKU
392562
Brand
MPN
GS-5424PLC V2
Warranty
Standard Manufacturer's Warranty
$533.00
Buy Now And Earn 533 Reward Points!
| HARDWARE | |
| Ports | 24 x RJ45 10/100/1000Base-T Gigabit ports 4 x RJ45/SFP Gigabit combo uplinks 1 x RJ45 Console port |
| Transmission Method | Store and forward |
| Buttons | Reset button PoE power budget status selection button |
| LED Indicators | Per Port: Link/Act PoE: Act/Status Per Unit: Power |
| Power Input | 100-240V AC, 50-60 Hz, internal power supply |
| Total Power Budget | 400W |
| Fan | 2 x Fans with hot-swappable fan tray |
| Dimensions (L x W x H) | 441 × 270 × 45 mm |
| Weight | 4.45kg |
| PERFORMANCE | |
| Switching Capacity | 56Gbps |
| Forwarding Rate | 41.6Mpps (64-byte package size) |
| MAC Address | 8K |
| Jumbo Frames | 9K Bytes |
| Buffer Memory | 4.1Mb |
| Filtering / Forwarding Rates | 1000Mbps port – 1,488,000pps 100Mbps port - 148,800pps 10Mbps port - 14,880pps |
| POWER OVER ETHERNET | |
| Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) End-Span (mode A) |
| Management | PoE status, PoE on/off, PoE PD alive check, per port priority setting |
| PoE Long Range | Guaranteed PoE long range to 200 meters at 10Mbps |
| Power Backfeed Protection | Built-in |
| SMART FEATURES | |
| Quality of Service (QoS) | Rate limiting on packets sent and received by an interface Eight queues on each port WRR, SP, WRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Rate limiting in each queue and traffic shaping on ports |
| Class of Service (CoS) | IEEE 802.1p class of service (SPQ, WRR) Port-based CoS IP TOS precedence 802.1p VLAN Information based CoS DSCP based CoS TCP/UDP Based CoS |
| Spanning Tree | IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) |
| VLAN | Up to 200 VLANs and 4096 VLAN IDs 802.1Q tag-based VLAN Port-based VLAN Surveillance VLAN Voice VLAN MAC VLAN GVRP |
| IPV6 | IPv6 over Ethernet (RFC 2464) Dual-stack (RFC 4213) ICMPv6 (RFC 4884) Neighbor discovery (RFC 4861) Auto configuration Static IPv6 address and prefix length Static IPv6 default gateway IPv6 duplicate address detection |
| Port Trunking | IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups |
| IGMP Snooping | IGMP v1/v2/v3 snooping |
| Port Mirroring | Port mirroring both on ingress and egress traffic |
| Security | RADIUS AAA Management Access Authentication Manager Port Security Protected Port Storm Control DoS Dynamic ARP Inspection DHCP Snooping IP Source Guard |
| Management | User Interface: Web-based management User Account: Login account configuration Firmware Upgrade: Firmware upgrade by WEB Syslog: Support event log, alarm log and security log |
| OTHERS | |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3z 1000BaseSX/LX IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet (PoE+) IEEE 802.3x Full-duplex and flow control IEEE 802.1p Quality of Service (QoS) IEEE 802.1x Port-based Network Access Control(PNAC) IEEE 802.1Q Virtual LANs VLANs IEEE 802.1d Spanning Tree Protocol(STP) IEEE 802.1w Rapid Spanning Tree Protocol(RSTP) IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3az Energy Efficient Ethernet |
| Environmental Condition | Temperature: Operating: 0~45°C (32~122°F) Storage: -40~70°C (-40~158°F) Humidity: Operating : 10~90% RH (Non-Condensing) Storage: 5~90% RH (Non-Condensing) |
| Certifications | FCC Class A, CE, ONVIF Compliant |
