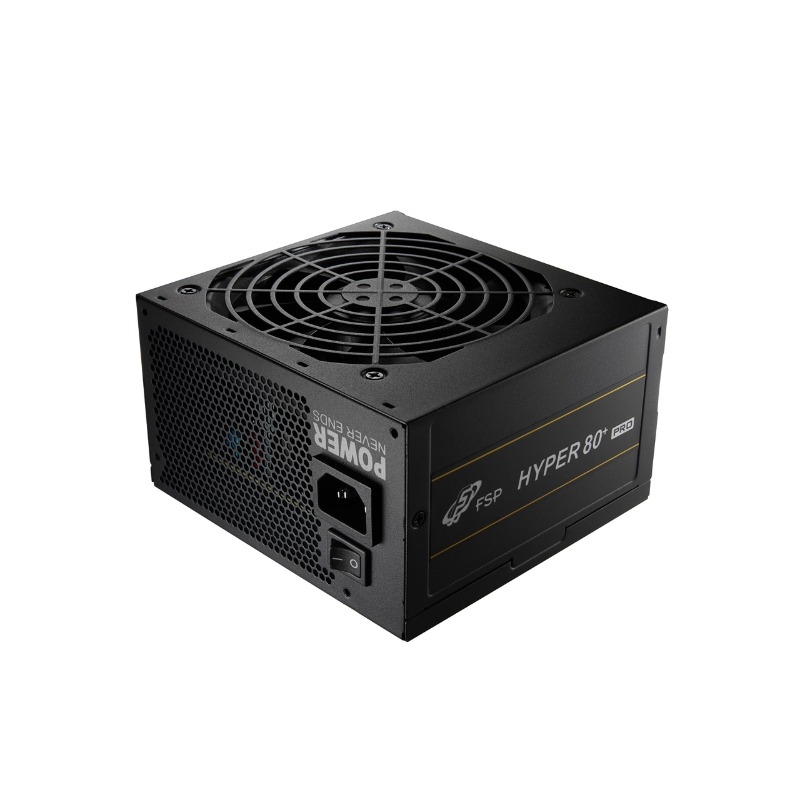

FSP ATX PSU:Hyper 80+ Pro 550W80Plus, 120mm Fan, 1x CPU (4+4 Pin), 2x PCI-E (6+2 Pin), 2x Molex, 5x SATA, 1x Floppy, OEM - No Power Cable
SKU
401316
Brand
MPN
H3-550
Warranty
Standard Manufacturer's Warranty
$73.00
Buy Now And Earn 73 Reward Points!
AC/DC
| AC Input | 100-240Vac~ 4.5A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 16A | 16A | 45.8A | 0.3A | 2.5A |
| Max Combined Power | 85W | 549.6W | 3.6W | 12.5W | |
| Total Power | 550W | ||||
Cables
 |
 |
 |
 |
 |
 |
|
| ATX 24 | 4+4 PIN | PCI-E 6+2 | SATA | Molex (PERIPHERAL) |
Floppy | |
| Connectors | 1 | 1 | 2 | 5 | 2 | 1 |
| Model | H3-550 |
|---|---|
| Rated Output Power | 550W |
| Form Factor | ATX |
| Input Voltage | 200-240V |
| Input Current | 4.5A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | 85% |
| Fan Type | Sleeve Fan, 120mm |
| Dimensions(L x W x H) | 150 x 140 x 86mm |
| Weight | 1.255 kgs |
| Protection | OCP, OVP, OPP, SCP |
