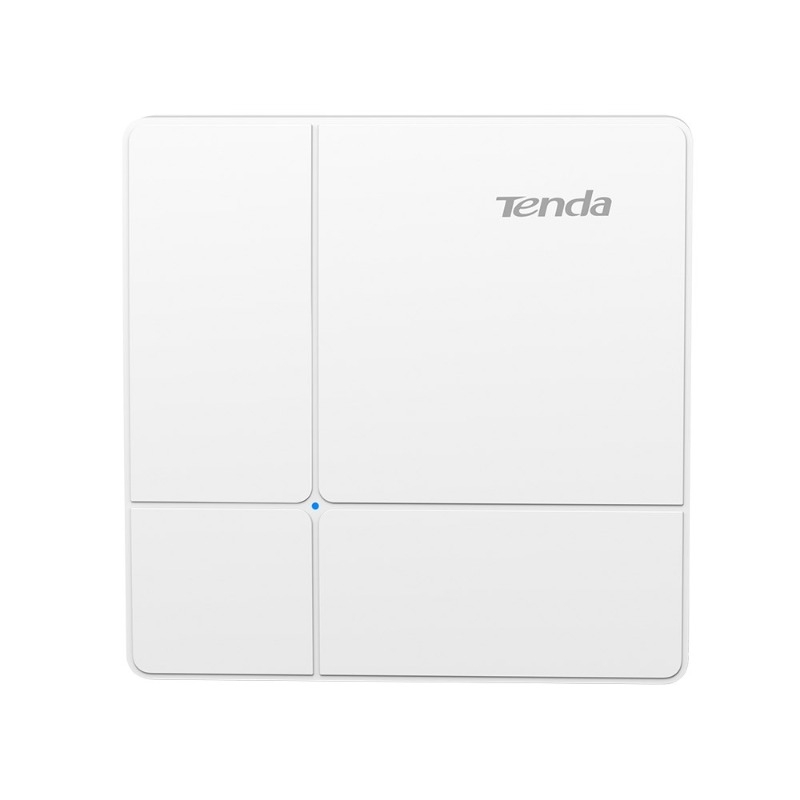

TENDA (i24) AC1200 ceiling AP, PoE, 1GE, 100 clients
SKU
394265
Brand
MPN
i24
Warranty
Standard Manufacturer's Warranty
$107.00
Buy Now And Earn 107 Reward Points!
Hardware
Dimension
178 × 178 × 38mm
Ethernet Interface
1 x 10/100/1000 Base TX
Antenna
2.4GHz: 2 x 4dBi
5GHz: 2 x 4dBi
5GHz: 2 x 4dBi
Button
1 x RESET
LED Indicator
1 x SYS
Maximum Power Consumption
<11.5W
Power supply standard
802.3af/at and DC: 12V 1A
Wireless
Frequency Band
2.4GHz
Data Rate
2.4GHz: 300Mbps
5GHz: 867Mbps
5GHz: 867Mbps
Wireless Standard
802.11a/b/g/n/ac(wave2)
Channel width
Max Transmit Power
2.4GHz: 23dBm
5GHz: 23dBm
5GHz: 23dBm
Sensitivity
802.11b :-93 dBm
2.4 GHz 802.11n (MCS7):-73dBm
5 GHz 802.11a :-93 dBm
5 GHz 802.11n (MCS7) :-74 dBm
2.4 GHz 802.11n (MCS7):-73dBm
5 GHz 802.11a :-93 dBm
5 GHz 802.11n (MCS7) :-74 dBm
Software
MU-MIMO
Support
Operating Mode
AP/Client AP
Hide SSID
Support
Max. No. of SSID
2.4GHz: 8
5GHz: 4
5GHz: 4
Max. connected clients
256
WEP
Support
802.11 k/v
Fast roaming
TWT
Beamforming
OFDMA
WPA-PSK
Support
WPA2-PSK
Support
WPA3-ASE
WPA
Support
WPA2
Support
Access control
Support
Adjustable power transmit
Support
AP isolation
Support
Frequency analysis
Connected clients control
Support
RSSI Threshold
Support
WMM
Support
VLAN tagging for SSID
Support
LED control
Support
Diagnostics
Support
Schedule Reboot
Support
Reboot at specified interval
Support
Centralized Management
Support
System Logs
Support
Firmware upgrade
Support
Reboot
Support
Reset Button
Support
Backup configuration
Support
Restore configuration
Support
Others
Default login IP
192.168.0.254
Default Login Username
admin
Default Login Password
admin
Operation Temperature
-10℃ ~ 40℃
Operating humidity
10%~90% non-condensing
Storage temperature
-30℃ ~ 70℃
Storage humidity
10%~90% non-condensing
