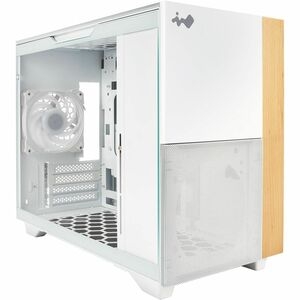

In Win IW-CS-F3WHI-1AN120P Gaming Computer Case - Micro ATX, Mini ITX Motherboard Supported - Mini-tower - SECC, Tempered Glass, Wood, Mesh - White - 1 x 120mm Fan(s) Installed - 2 x Fan(s) Supported - 1 x Internal 3.5" Bay(s) - 1 x Internal 2.5" Bay(s)
Redefine Your PC Aesthetic
Inheriting the classy F-Series design, the new F3 case offers a choice between elegant maple wood and modern glass, allowing your PC to fit your lifestyle and taste.
All About the Hardware Flair
The F3 accommodates micro-ATX motherboards and supports GPU lengths up to 340 mm. It can even fit high-end graphics cards to make it ideal for creating compact workstations capable of light AI computation or a killer gaming PC. The choice is yours!
Build Small. Play Big.
This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Back-Connector M/B Design
The F3 supports back-connecting motherboards provide tidier cable management and allows for easy installation of two HDDs or three SSDs.
Breathe Easy
The F3 boasts exceptional ventilation by supporting up to six fans. Two 120/140 mm fans or a 240/280 mm AIO coolers can be installed on the top. The front mesh panel allows for ample ventilation.
- The space-saving mini-tower structure supports up to 2 fan(s) to maintain the casing ambient along with offering power-pack performance and portability
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
I/O Expansions | |
Total Number of Expansion Slots | 4 |
Power Description | |
Power Supply Installed | No |
Bays | |
"Number of Internal 2.5"" Bays" | 1 |
"Number of Internal 3.5"" Bays" | 1 |
"Number of Internal 2.5""/3.5"" Bays" | 1 |
General Information | |
Product Type | Gaming Computer Case |
Manufacturer Part Number | IW-CS-F3WHI-1AN120P |
Manufacturer Website Address | http://www.in-win.com.tw/Corporate/zh/ |
Manufacturer | In Win Development, Inc |
Product Model | IW-CS-F3WHI-1AN120P |
Product Name | IW-CS-F3WHI-1AN120P Gaming Computer Case |
Brand Name | In Win |
Interfaces/Ports | |
Microphone | Yes |
Front USB | Yes |
Front Audio In | Yes |
Front Audio Out | Yes |
Total Number of USB Ports | 3 |
Total Number of Audio In Ports | 1 |
Total Number of Audio Out Ports | 1 |
USB Port Details | 2 x USB 3.2 Gen 1 |
1 x USB 3.2 Gen 2x2 Type C | |
Technical Information | |
Motherboard Supported | Micro ATX |
Mini ITX | |
Features | Cable Management |
Number of Fans Supported | 2 |
Number of Fans Installed | 1 |
Fan Size Supported | 120 mm |
140 mm | |
Installed Fan Size | 120 mm |
Installed Fan Size Details | 1 x 120mm |
Physical Characteristics | |
Weight (Approximate) | 7.25 kg |
Form Factor | Mini-tower |
Cooler Type | Fan/Liquid Cooler |
Height | 359 mm |
Width | 215 mm |
Depth | 460 mm |
Product Color | White |
Maximum CPU Cooler Height | 340 mm |
Maximum PSU Length | 160 mm |
Color Family | White |
Product Material | Tempered Glass |
SECC | |
Mesh | |
Wood | |
Maximum GPU Length | 340 mm |
