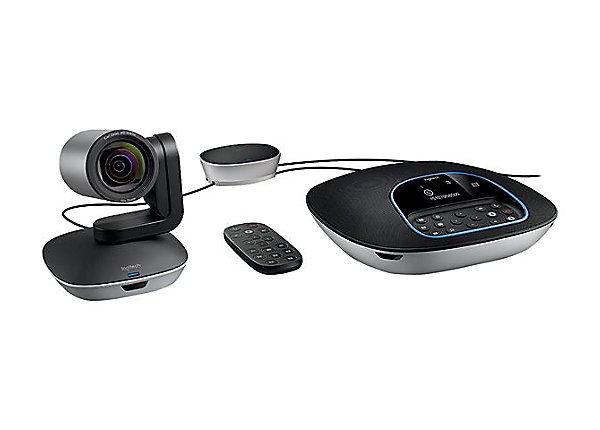

Logitech Conferencecam Group Replace For Cc3000e 960-001054
PERFECT FOR 14 TO 20 PEOPLE
Meeting participants now can be easily seen and heard. GROUP delivers HD video and exceptionally clear audio. Optional expansion mics are available for larger rooms. Advanced features like acoustic echo cancellation, noise reduction technology, and intuitive controls deliver natural sound.
EASY, PLUG-AND-PLAY SIMPLICITY
To set up a video meeting with GROUP, connect it to your laptop through USB, and you’re good to go. Use GROUP with any video conferencing software, including those you already use. For great-sounding audio calls, pair your mobile device with Bluetooth® wireless technology to the GROUP speakerphone.
OPTIONS GIVE YOU VERSATILITY
Customize the setup to match the layout and size of your room. GROUP offers options for camera mounting and mics: Use the camera on the table, attach it to a tripod, or mount it on the wall with included hardware. Optional expansion mics extend the coverage up to 8.5 meters (28').
HIGH-DEFINITION VIDEO
Bring meetings to life with GROUP’s high-quality HD 1080p video at 30 frames per second. H.264 compression reduces bandwidth. 10x zoom provides close ups with detail and clarity. ZEISS® lens certification meets high standards for video quality. Autofocus simplifies setup.
NATURAL-SOUNDING AUDIO
Everyone hears and can be heard with GROUP’s duplex speakerphone, which delivers sound that’s crisp, clear, and highly intelligible. Acoustic echo cancellation and noise reduction technology make conversations natural-
Easy to use
Works with leading applications
Continue to work within your own computing environment. GROUP is compatible with most video software applications – including the ones you’re already using.
Certified for Skype for Business™ Certified, Optimized for Microsoft® Lync, Cisco Jabber® and WebEx® compatible.
Customizable setup
-
Large groups
Group is ideal for mid- to large-size video conferences. If you have a larger room or larger groups, the optional expansion mics will extend the audio range to 8.5m or 28 feet. -
Sharp video quality
This video system offers HD 1080p video quality at 30 frames-per-second. -
Clear audio quality
Group has full-duplex speakerphone with life-like sound that’s crisp, clear, and highly intelligible. -
90-degree field of view
Everyone can be seen with the 90-degree field of view. Focus on speaker, material, or whiteboard with mechanical 260-degree pan and 130-degree tilt -
Remote control
You have two ways to operate the camera’s pan, tilt, and zoom functions, or the speakerphone’s volume up/down and answer/hang-up. Control these functions on the speakerphone console or with remote control. Keep track of the remote by docking it in the console when not in use. -
Five camera presets
Multiple camera presets make it easy to frame and focus the lens on frequently used views – such as the conference table, whiteboard, and close-ups – and quickly return to each view at the touch of a button.
ding while reducing reverberation and ambient noise.
SPECS & DETAILS
Dimensions
- Camera:
- Height x Width x Depth: 130 mm x 170 mm x 138 mm
Weight: 585 g
Speakerphone: - Height x Width x Depth: 240 mm x 65 mm x 240 mm
Weight: 1223 g
Hub: - Height x Width x Depth: 94 mm x 34 mm x 74 mm
Weight: 83 g
Remote: - Height x Width x Depth: 50 mm x 120 mm x 12 mm
Weight: 51 g
Wall/Table Mount: - Height x Width x Depth: 210 mm x 120 mm x 99 mm
Weight: 255 g
System Requirements
-
Windows® 7, 8.1 or 10
Mac® OS X 10.7 or higher
Technical Specifications
Camera:
- Smooth motorized pan
- Tilt and zoom
- Controlled from remote or console 260°pan
- 130-degree tilt
- 10x lossless HD zoom
- 90-degree field of view
- Full HD 1080p 30fps
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Autofocus 5 camera presets
- Far-end control (PTZ) of ConferenceCam product
- ZEISS lens certification
- Kensington security slot
- LED to confirm video streaming
- Standard tripod thread
Remote control:
- Dockable 8.5 m/28-foot range
Speakerphone:
- Full-duplex performance
- Acoustic echo cancellation
- Noise reduction technology
- Ultra-wideband audio
- Bluetooth and NFC enabled
- LCD for caller ID, call duration and other functional response
- LEDs for speakerphone streaming, mute, hold, and Bluetooth
- Touch controls for call answer/end, volume and mute, Bluetooth – plus camera
- PTZ, “home” preset and far-end control
- Microphones (Tx)
- Four omni-directional microphones supporting 6 m/20-foot diameter range
- Frequency response: 100Hz – 11KHz
- Sensitivity: -28dB +/-3dB
- Distortion: <5% from 200Hz
- Kensington security slot
Hub / Cable:
- Central mountable hub for connection of all components
- Included adhesive solution for under-table mounting
- Two cables for connection between hub and camera/ speakerphone (Length: 5m/16 ft)
- One USB cable for connection to PC/Mac (Length: 2 m/6.6 ft)
- AC Power adapter (Length: 3 m/9.8 ft)
Mount:
Dual purpose mount for wall placement or for elevating camera on table
Compliance and tools:
- USB 2.0 compliant
- UVC-compliant video and audio for broad application compatibility
- Skype for Busines certified, Microsoft® Lync®, Cisco Jabber® and WebEx® compatible
- Enhanced integration with Logitech Collaboration Program (LCP) members
- Downloadable diagnostic tool
- Field upgradeable firmware tool
- Downloadable app plug-ins for advanced feature support
Package Contents
- Camera
Speakerphone
Remote control
Two 5m/16.4’ cables for connection between speakerphone and hub and camera and hub
One 3m/9.8’ meter cable between hub and PC
Velcro for cable management
Velcro for hub to table securing
Powered hub
Power adapter with regional plugs
Mount
Quick start guide
Warranty card
Warranty Information
2-Year Limited Hardware Warranty
Part Number
GROUP
- PN 960-001054
Logitech GROUP HD Video and Audio Conferencing System
GROUP, the amazingly affordable video conferencing system for mid- to large-sized conference rooms, allows any meeting place to be a video collaboration space. It's as simple to use as a mobile phone and affordable as an office chair, it's easier than ever to include anyone in the conversation. USB Plug-and-Play connectivity makes GROUP a breeze to deploy and use.
It even works within your own familiar computing environment with any video conferencing software application - including the ones you already use. Razor sharp video and a beautifully designed full-duplex speakerphone deliver an outstanding collaboration experience that's so awesome everyone can be seen and heard. Simply connect a laptop and start a meeting, or use the state-of-the-art speakerphone with a Bluetooth-enabled mobile device for great-sounding audio calls.
