Logitech G Pro Flight Yoke System 945-000023
SPECIFICATIONS
PART NUMBER
945-000023
WARRANTY INFORMATION
2-Year Limited Hardware Warranty*
*Special Cases: Before April 2017, Saitek products will be 90-day warranty.
SYSTEM REQUIREMENTS
Smart Technology
Windows® 10, Windows 8.1, Windows 7
1-USB 2.0 Port
Internet connection for optional software download
PACKAGING CONTENT
Flight Yoke with 1.8m USB Connector Cable
Flight Throttle Quadrant with 1.5m PS/2 Connector Cable
2 Desk Clamps
PHYSICAL SPECIFICATIONS
Flight Yoke:
Length: 38 – 46.4 cm
Width: 31 cm
Height: 18.5 cm
Weight (w/o clamps): 1775 g
Weight: 2094 g
Cable Length (Power/Charging): 1.8 m
Yoke Clamp:
Length: 16.7 cm
Width: 15.5 cm
Height: 24.7 cm
Flight Throttle Quadrant:
Length: 11 – 17.5 cm
Width: 16.5 – 17.5 cm
Height: 9 cm
Weight (w/o clamps): 501 g
Weight: 694 g
Cable Length (Power/Charging): 1.5 m
Throttle Quadrant Clamp:
Length: 10.8 cm
Width: 11 cm
Height: 9 cm
CONTROLLER SPECIFICATIONS
Connection Type: USB
USB Protocol: USB 2.0
USB Speed: Full Speed
Indicator LIghts (LED): Yes
LCD Display: Yes
USB Ports (Built-in): Yes
Backlighting: No

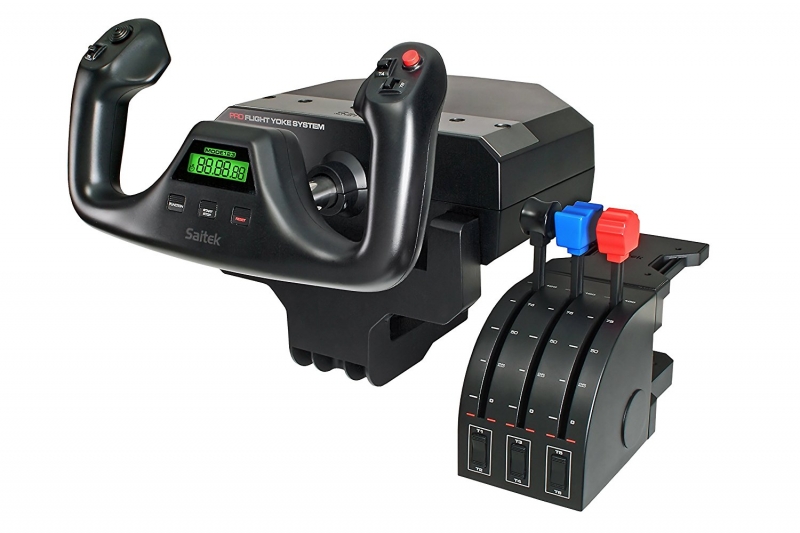

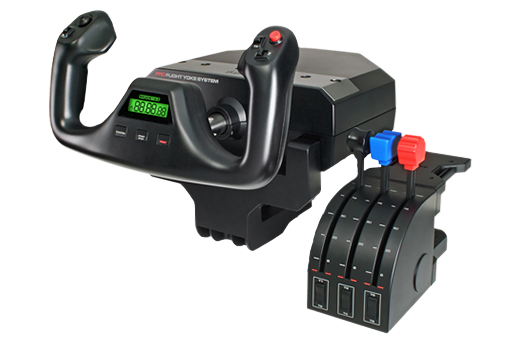

Logitech Pro Flight Yoke System, Professional Simulation Yoke and Throttle
The Aspiring Pilot's Introduction to Flight Simulation Hardware
Whether your preferred plane is commercial or private, the Saitek Pro Flight Yoke with included Throttle Quadrant is a must-have for beginning and advanced flight simulation enthusiasts. Delivering realistic and precise control while enhancing muscle memory, the Yoke and Throttle Quadrant with five total axes simulate what it feels like to truly fly an aircraft. Saitek's Pro Flight equipment is modular and interchangeable, and the Yoke anchors a comprehensive flight sim setup. There's no better way to begin your flight sim experience than with Saitek, the market leader in high-performance flight simulation hardware.
Simple Plug-and-Play Installation
The Throttle Quadrant connects to the Yoke via PS/2 connector cable, and the Yoke directly connects to a USB port on your PC or Mac. You can then simply load your favorite sim, set controls in the sim's options menu, and you're all set for virtual flight without the need to load drivers or install extra software. The Yoke's four-foot-long USB cable frees you to place the controls where they're most convenient for you.
Pro Flight Yoke with Durable Metal Shaft
Unlike the mostly plastic offerings on the market, Saitek's Pro Flight Yoke utilizes a durable stainless steel shaft with precision bearings for smooth, predictable elevator and aileron control. Whether navigating the front-to-back, side-to-side, or vertical axes, all controls are right at your fingertips. The built-in stopwatch is perfect for timing approaches, and if your PC lacks available USB ports, an integrated USB Hub* provides a docking station for additional Saitek hardware
Powerful Programming Software (PC Only)
The Yoke and Quadrant combo comes with 25 buttons and switch positions, more than enough to assign the essential controls in your favorite sim. However, if you need even more programming capability, simply go to the Downloads page* on Saitek.com and download the Drivers and Software for your computer's operating system. You can then use a three-position switch to cycle through three different modes. The ability to switch modes elevates the total number of user-definable controls to 75.
Rugged Mounting Hardware
Saitek's Pro Flight Yoke and Throttle Quadrant are both equipped with adaptable mounting clamps which provide the freedom to configure your kit in any manner you see fit. Whether on top of your desk or clamped to the front, you can securely place the controls exactly where you want them.
Fully Customizable to Meet Your Needs
