DESCRIPTION

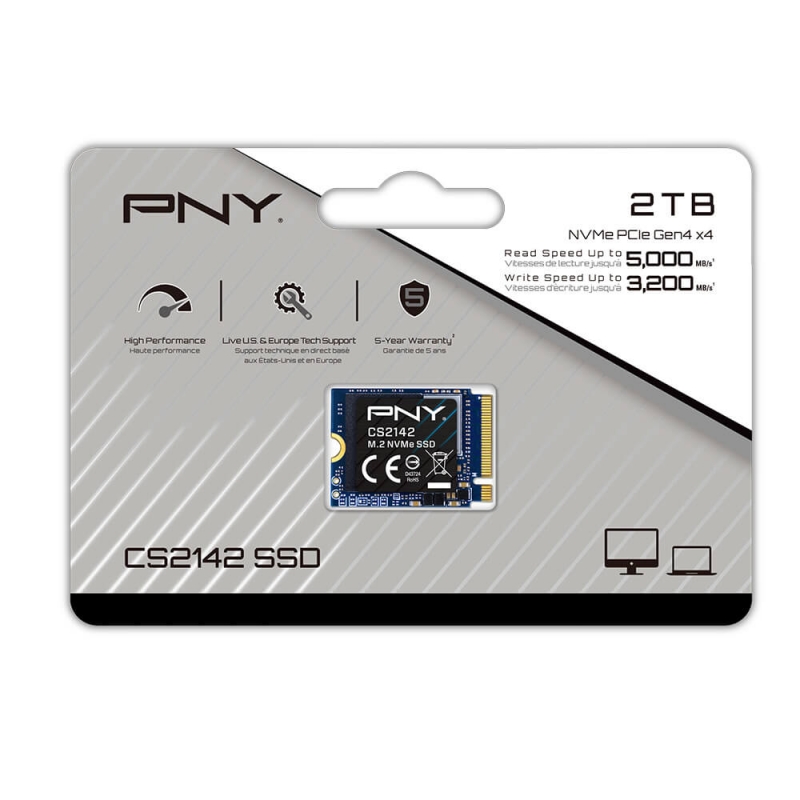

PNY CS2142 2TB PCIe M.2 2230 NVMe Gen4x4 SSD 5,000MB/s 3200MB/s 5yrs

- NVMe Gen4 upgrade from a SATA based solid state drive (SSD) in an NVMe enabled computer or handheld
- High performance SSD with up to double the performance as compared to entry Gen3 x4 based SSDs
- Sequential Read of up to 5,000 MB/s and Write of up to 3,200 MB/s
- Faster boot up, quicker application launch, and better overall system performance
- Cost effective and high performance is ideal for demanding applications, games and workloads
- Backed by a 5 year limited warranty or TBW*

Specification
Usable Capacities 2TB
NAND Components 3D NAND Flash Memory
Interface PCIe Gen4x4 NVMe 1.4
Form Factor M.2 2230
Package Dimensions (L×W×H) 123 x 85 x 4.3 mm
Product Dimensions (L×W×H) 30 x 22 x 1.35 mm (Max)
Weight 2.8g
Max Sequential Read* 2TB: Up to 5,000MB/s
Max Sequential Write* 1TB - 2TB: Up to 3,200MB/s
PCIe Link Power Management PS0/PS1/PS2/PS3/PS4/ APST, ASPM, L1.2
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Certifications BSMI, CE, FCC, KCC, REACH, RoHS, VCCI
MTBF 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity Check) ECC Algorithm
Secure Erase Secure Erase,Crypto Erase
Product Health Monitoring Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
Full End-to-End Data path protection Supported
Performance Optimization HMB (Host Memory Buffer)
Warranty 5-year Limited Warranty
