DESCRIPTION

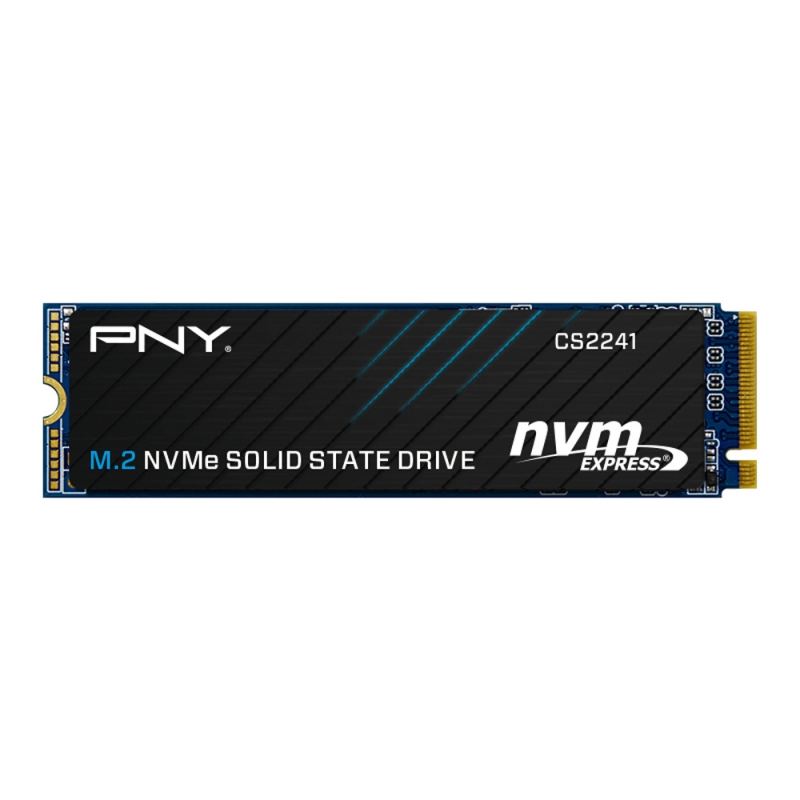

PNY CS2241 500GB NVMe SSD Gen4x4 M.2 4700MB/s 1700MB/s R/W TBW 1.5M hrs MTBF 5yrs wty

PRODUCT SPECIFICATIONS
NAND Components - 3D Flash Memory
Interface - PCIe Gen4 x4
Form Factor - M.2 2280

PERFORMANCE (MAX SEQUENTIAL READ/WRITE)
4700 MB/s (Read), 1,700 MB/s (Write)

POWER
PCIe Power Management - PS0/PS1/PS2/PS3/PS4,APST, ASPM, L1.2

ENVIRONMENTAL
Operating Temperature 0°C ~ 70°C
Storage Temperature -40°C ~ 85°C
Certifications BSMI, CE, FCC, KCC,

RELIABILITY/SECURITY
Mean Time Between Failures (MTBF) 1,500,000 Hours
Error Correction Code LDPC (Low Density Parity
Check) ECC Algorithm
Product Health Monitoring Self-Monitoring, Analysis and
Reporting Technology (S.M.A.R.T)
Full End-to-End Data
path protection Supported

COMPATIBILITY
RAID (0/1) Supported
NVMe NVMe 1.4

Retail Dimensions (L x W x H) 123 x 85 x 4.3 mm
Product Dimension (L x W x H) 22 x 80 x 4 mm (Max)
Weight 6.6g

APPLICATIONS
• An excellent choice for a mainstream performance upgrade to Gen4 technology in an NVMe enabled desktop or laptop computer
• High performance SSD with up to 8 times the performance as compared to SATA based SSDs

FEATURES AND BENEFITS
• Sequential Read of up to 5,100 MB/s and Write of up to 4,200 MB/s
• Faster boot up, quicker application launch, and improved overall system performance
• Reliable storage
• Low power consumption, cool and quiet operation
• Backed by a 5 year limited warranty or TBW & live US tech support*
