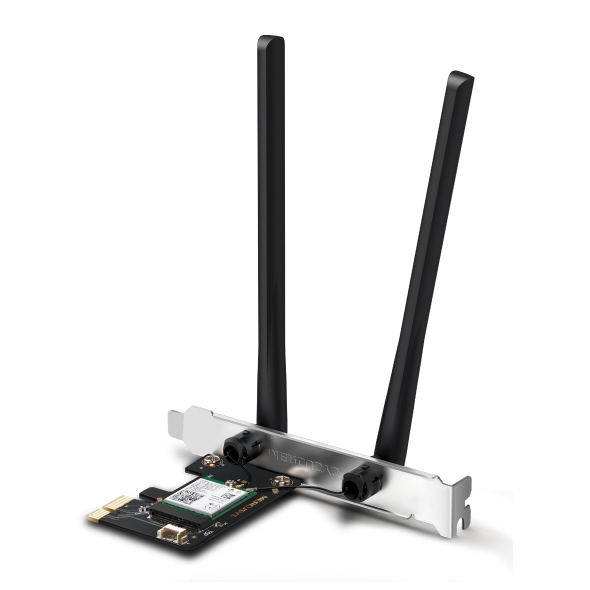

TP-LINK MERCUSYS MA80XE AX3000 WIFI 6 BLUETOOTH 5.2PCIE ADAPTER, 2YR MA80XE

SKU
405567
Brand
MPN
MA80XE
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$52.00
Buy Now And Earn 52 Reward Points!
Wireless
Wireless Standards


IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz


Signal Rate


2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz


Reception Sensitivity


5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm

2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm


Wireless Security


WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware
Dimensions (W X D X H)


8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm)


Antenna Type


2× Fixed High-Performance Omni-Directional Antennas

Others
Package Contents


AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (MA80XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD


Environment


Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing


System Requirements


Supported operating systems include Windows 10, 11(64-bit)

TP-LINK MERCUSYS MA80XE AX3000 WIFI 6 BLUETOOTH 5.2PCIE ADAPTER, 2YR
