DESCRIPTION

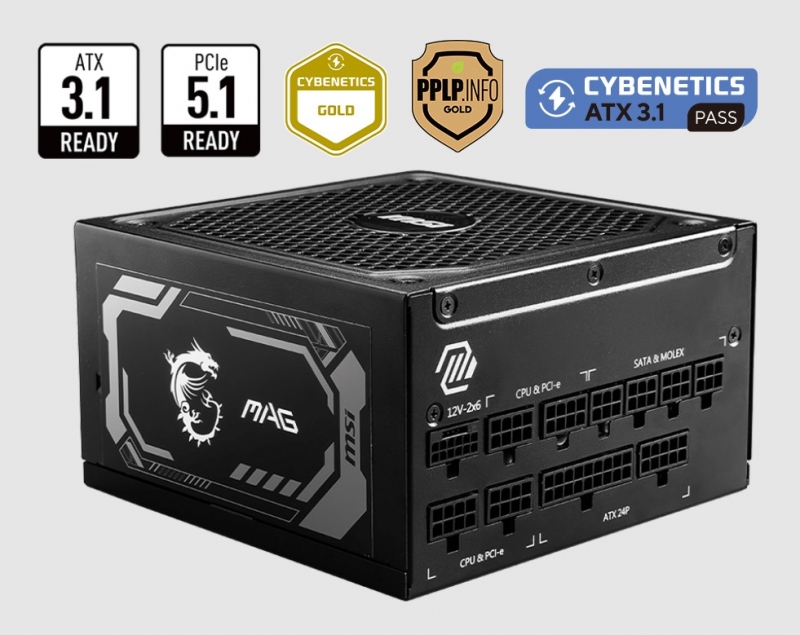

MSI MAG A1000GL PCIE5 ATX Power Supply Unit, 80 PLUS Gold, Fully modular flat cables, 0 RPM Mode, Active PFC design

FEATURES:
Supports Nvidia® GeForce RTXTM 40 Series graphics cards
Full modular design
Flat cables
80 Plus Gold certified for high efficiency
100% all Japanese 105oC capacitor
Active PFC design
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design

SPECIFICATIONS:
Efficiency Rating 80 Plus Gold (Up To 90%)
Modular Yes (Fully Modular)
Fan Size 135 Mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (Dxwxh) 150 X 150 X 86 Mm
Pfc Type Active Pfc
Input Voltage Range 100~240 Vac
Power Watt 1000W
Power Excursion 2000W (*Up To 200% Of The Psu'S Rated Power For 100Μs)
Input Frequency Range 50~60 Hz
Protection Ocp / Ovp / Opp / Otp / Scp / Uvp
Atx (24 Pin) 1
Eps (4+4 Pin) 2
Pci-E 5.0 (16 Pin) 1 (600W)
Pci-E (6+2 Pin) 6
Sata (15 Pin) 12
Molex (4 Pin) 4
Fdd (4 Pin) 1
