Asus Matx Motherboard: H310 Socket 1151 For Intel 8Th Gen. Processors 2X Ddr4 4X Sata 6Gb/ S

SKU
274036
Brand
Asus
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

QUICK OVERVIEW

M.2 Usb 3.1 Gigabit Lan Hdmi/ Vga Prime H310M-E R2.0
Add to Compare

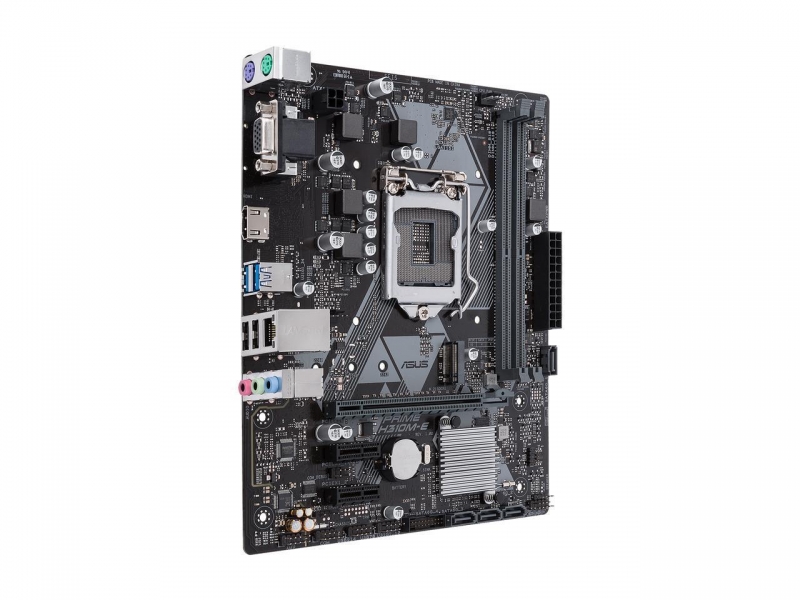

ASUS Prime H310M-E R2.0 LGA1151 (Intel 8th Gen) DDR4 HDMI VGA H310 Micro ATX Motherboard

  • Designed exclusively for 8th generation Intel® Core™ processors to maximize connectivity and speed with an integrated M.2 slot
  • 5X Protection III Hardware-level safeguards provide component longevity and reliability
  • FanXpert delivers advanced fan controls for dynamic cooling
  • ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
  • On-board 8-Channel HD Audio provides warm, immersive crystal-clear surround sound

ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel® Core™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.

Tune it your way

Improved DDR4 stability

ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications

5X

Protection III

Hardware safeguards to ensure long-term durability.



520+

DDR4 compatibility

Industry-leading DDR4 memory compatibility for best flexibility and reassurance.



1000+

compatible devices

Compatibility with a range of CPUs, memory modules, graphics cards and more.



8000+

validation hours

Extensive testing with latest components for enhanced reliability, compatibility and safety.

Prime 300 Series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design and exacting standards to guarantee the quality and long-term durability of your investment. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world's leading motherboard brand.

Learn more

1000+

Compatible devices and components

The superior compatibility of Prime 300 Series is evidenced by our extensive list of supported devices — which includes thousands of compatible components — and our Qualified Vendor List (QVL) that identifies memory compatibility. It all adds up to more choices for worry-free PC-building experiences.

8000+

VALIDATION HOURS

ASUS motherboards offer superb endurance. We verify this by subjecting every board to more than 8,000 hours of stringent tests. A barrage of burn-in, environmental, compatibility, software and safety tests confirm that our motherboards are exceptionally robust. It also shows that ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Learn more
Upgrade to unrivalled audio
　
　
　

Outstanding audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!

Audio shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.


Separate layer for left and right tracks

Ensures minimal crosstalk between audio paths.


Premium Japanese-made audio capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

* Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.

Visual beauty, virtual worlds

Beyond VR ready

Complete your immersion

Prime 300 series isn't just VR ready — it goes way beyond. The ASUS Beyond VR Ready marque means that Prime 300 series has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

  • CPU
    Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® H310
  • Memory
    2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor
    ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/D-Sub ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz
    - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
    2 x PCIe 2.0 x1
  • Storage
    Intel® H310 Chipset :
    1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
    4 x SATA 6Gb/s port(s), gray,
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN
    　
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    Intel® H310 Chipset :
    4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
    Intel® H310 Chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: Premium components provide better power efficiency
    ASUS OptiMem：
    - Optimem (Improved DDR4 stability)
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - PC Cleaner
    - File Transfer
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-DIMM
    M.2 Onboard(The latest transfer technologies with up to 10Gb/s data transfer speeds)
  • Back I/O Ports
    1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
    1 x TPM header
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x Chassis Fan connector(s) (1 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x Speaker connector
  • Accessories
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Anchor
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    Micro ATX Form Factor
    8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
  • Note
    *1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
    Due to the Chipset limitation, when a M.2 device is installed in PCIe mode, the socket is set
    to PCIe 2.0.
