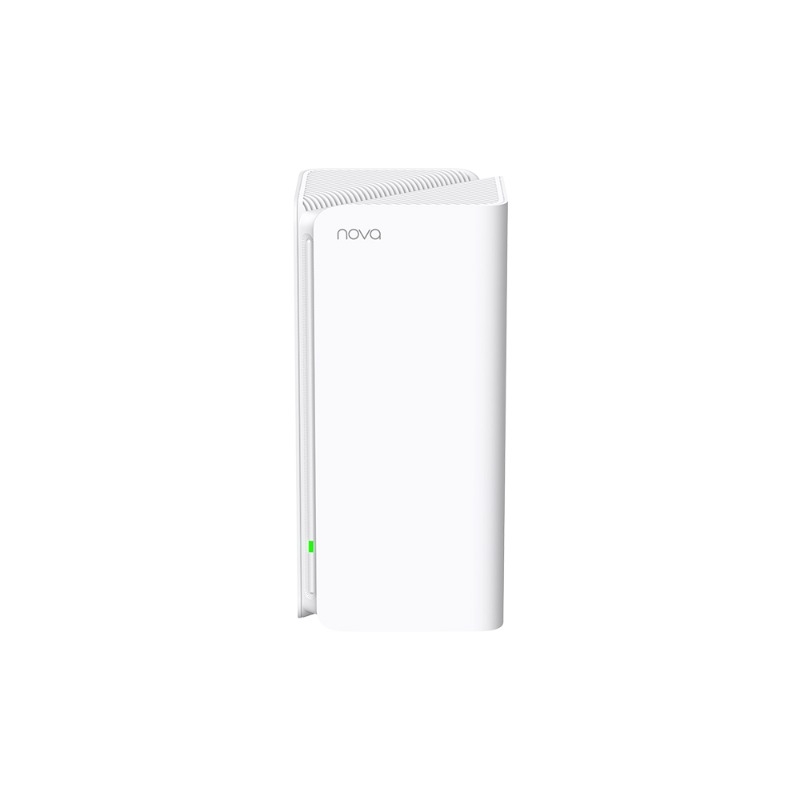

Tenda (MX15 Pro(1-pack))nova AX5400 Whole Home Mesh Wi-Fi 6 System, 1pack [No return]
SKU
408028
Brand
MPN
MX15 Pro(1-pack)
Warranty
Standard Manufacturer's Warranty
$187.00
Buy Now And Earn 187 Reward Points!
Hardware
Standard&Protocol
IEEE802.11a/b/g/n/ac/ax
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ethernet Interface
3 x 10/100/1000Mbps RJ45 ports per node
Antenna
6 x 3dBi Internal antenna
Button
1 x Reset Button
1 x MESH Button
1 x MESH Button
Power
Input: AC 100-240V, 50/60Hz
Output: DC 12 V ⎓ 1.5 A
Output: DC 12 V ⎓ 1.5 A
Dimension
105x105x200mm（4.13x4.13x7.87）
LED Indicator
1 x Tri-color LED Indicator(Green,Yellow,Red)
Wireless
Wireless Standard
IEEE802.11a/b/g/n/ac/ax
Wireless roaming
Comply with IEEE802.11k/v
Mesh network Standard
Wi-Fi EasyMesh
Rate
2.4GHz: 574Mbps (802.11ax, HE160)
5GHz: 4804Mbps (802.11ax)
5GHz: 4804Mbps (802.11ax)
Frequency
CE:
2.4G: 2412-2472MHz(CH1-CH13)
5G: 5150-5350MHz(CH36-CH64)
FCC:
2.4G: 2412-2462MHz(CH1-CH11)
5G: 5150-5350MHz(CH36-CH64)
5725-5850MHz(CH149-CH165)
2.4G: 2412-2472MHz(CH1-CH13)
5G: 5150-5350MHz(CH36-CH64)
FCC:
2.4G: 2412-2462MHz(CH1-CH11)
5G: 5150-5350MHz(CH36-CH64)
5725-5850MHz(CH149-CH165)
Transmission Power
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
Basic Features
Beam Forming
MU-MIMO
AP Steering
Band Steering
OFDMA
1024-QAM
MU-MIMO
AP Steering
Band Steering
OFDMA
1024-QAM
Wireless Security
WPA2-PSK
WPA3-SAE/WAP2-PSK
WPA3-SAE/WAP2-PSK
Software
Operating Mode
Router Mode,AP Mode
Internet Connection Type
PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia)
DHCP Server
DHCP Server, DHCP Client List
Virtual Server
Port Forwarding, DMZ Host, UPnP
Parental Control
Client Filter
URL Filter
Time Limit
URL Filter
Time Limit
Firewall
Forbid TCP/UDP flood attack
VPN
PPTP Server, PPTP/L2TP Client
DNS
Support manually setting DNS server
Special Features
Ethernet Backhaul
IPv6
IPTV
IPv6
IPTV
Others
Support App and web management
Guest Network
Firmware upgrade online
Guest Network
Firmware upgrade online
Others
Operation Temperature
0℃~40℃
Storage Temperature
-40C ~70℃
Operating Humidity
10 %~90% RH non-condensing
Storage Humidity
5 %~ 90%RH non-condensing
APP installation
Available in iOS 9.0 or later, Android 4.4 or later
Certification
CE
RoHS
FCC
RoHS
FCC
Package Contents
Mesh15X* 1, Power adapter x 1, QIG x 1, RJ45 Gigabit Ethernet cable x 1
