Olympus Vn-541pc Voice Recorder (4gb) - Micro Usb Connector Built-in Speaker 1 Year Warranty Vn-541pc
No Longer Available
Main Features
- Entry class model for memo recording designed to make setting and recording easy
- 'Recording Scene Select' – there is no need for detailed settings
- 'One-touch Recording' to ensure you will not miss a recording opportunity
- 'Noise Cancellation' for clear playback quality
- 'Recording Scene Folder function' + 'PC Link' assists you with your file searches

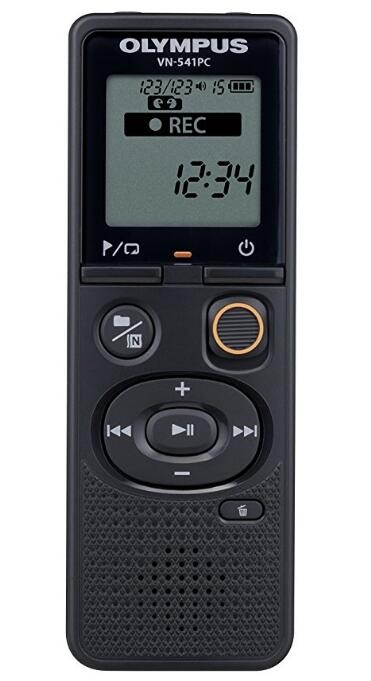

VN-541PC
The VN-541PC is intended for everybody who is about to start using a digital voice recorder. It is the perfect device for students of all ages. Packed with all useful features it is supporting you in all situations in your daily life at school, university and lectures of all types. The usability is very easy to understand. The switch is enabling even one-handed operation. The voice recorder incorporates one-touch direct recordings to be started at any time with one button and a micro USB connector to enable a connection with a PC.
- AAA Alkaline battery × 2
- USB cable (microB)
- Instruction manual
'Recording Scene Select'Recording settings will be completed just by selecting one of the four scenes ideal for your recording environment. No need for users to set detail recording setting as recorder will automatically choose the most suitable setting. Switch of recording scene can be done simply by pressing a button. Options are Memo, Talk, Music and LP(Long Play). | 'One-touch Recording'Recording will start just by sliding the recording switch upwards even when recorder is powered off. Recording starts just in the moment the user aims to do so as it is not necessary to press many buttons before recording starts. In addition, recording status on / off can be easily judged through the position of recording switch. | 'Recording Scene Folder function' + 'PC Link'Time for file searching can be saved if users remember which recording scene was selected during recording since each recorded file is automatically sorted into one of the four recording scene folders. By connecting the recorder to PC through the bundled micro USB cable, users can also search and find files easily by checking recording scene folders through the PC screen. | Ultimate ease of handlingOperation has been greatly improved, with large, highly visible buttons that can be thumb-operated, and a front speaker for easy listening. The unit has been designed to fit the forefinger, which makes it easy to carry. |
Recording/Playback formats
| Recording/Playback formats | WMA format |
|---|
Sampling frequency
| WMA 32 kbps | 44.1 kHz |
|---|---|
| WMA 16 kbps | 22.05 kHz |
| WMA 5 kbps | 8 kHz |
Maximum working output
| Maximum working output | 200 mW (8 Ω speaker) |
|---|
Maximum output voltage
| Recorder | ≦ 150 mV (according to EN 50332-2) |
|---|
Recording media
| Internal NAND flash memory | 4 GB |
|---|
- *Some recording media memory capacity is used as a management area, so the actual usable capacity will always be slightly less than the displayed capacity.
Speaker
| Speaker | Built-in 20 mm diameter round dynamic speaker |
|---|
Microphone jack
| Microphone jack | 3.5 mm diameter; Impedance: 2 kΩ |
|---|
Earphones jack
| Earphones jack | 3.5 mm diameter; Impedance: 8 Ω minimum |
|---|
Power source
| Power source | Two AAA dry cell batteries (model LR03) |
|---|
External dimensions
| External dimensions | 108 × 37.5 × 20 mm (Not including largest projection) |
|---|
Weight
| Weight | 67 g (including battery) |
|---|
Operating temperature
| Operating temperature | 0 to 42°C (32 to 107.6°F) |
|---|
Frequency response (During recording)
| MEMO | 200 Hz to 7 kHz |
|---|---|
| TALK | 200 Hz to 13 kHz |
| MUSIC | 40 Hz to 13 kHz |
| LP | 200 Hz to 3 kHz |
Frequency response (During playback)
| During playback | 20 Hz to 20 kHz (The upper and lower limit values of the frequency response depend on each recording format.) |
|---|
⚫Recording/Playback formats WMA format
⚫Internal NAND flash memory 4 GB
⚫Built-in 20 mm diameter round dynamic speaker
⚫Microphone jack 3.5 mm diameter
⚫Earphones jack 3.5 mm diameter
⚫Power Source Two AAA dry cell batteries (model LR03)
