Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x1
External Ports
1 - Fiber Optic SC Duplex
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
5~95% RH (Non-Condensing)
Hardware
Ports
1
Interface
Fiber Ethernet
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
IEEE802.3z 1000BASE-SX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
Chipset ID
Realtek - RTL8168H
Marvell - 88E1111B1
Indicators
LED Indicators
1 - Link (Green)
1 - Activity (Yellow)
Packaging Information
Package Height
1.9 in [49 mm]
Package Length
8.6 in [21.8 cm]
Package Width
6.7 in [17.1 cm]
Package Quantity
1
Shipping (Package) Weight
7.3 oz [208 g]
Performance
Maximum Data Transfer Rate
2000 Mbps (2 Gbps) - Full-Duplex
Buffer Size
48 KB
Compatible Networks
1000 Mbps (1 Gbps)
Full Duplex Support
Yes
MTBF
361, 978 hours
Physical Characteristics
Color
Green
Material
Steel
Product Length
4.7 in [12 cm]
Product Width
0.7 in [18 mm]
Product Height
4.6 in [11.8 cm]
Weight of Product
2.3 oz [66 g]
Power
Power Consumption (In Watts)
3.2W Max
Software
OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Mac OS X® 10.5 to 10.9
Linux 2.4.x and up - LTS Versions only
Microsoft Hyper-V®
Special Notes / Requirements
Note
Not compatible with 10/100 Mbps
What's in the Box
Included in Package
1 - 1 Port PCI Express Gigabit Fiber Network Card
1 - Low Profile Bracket
1 - Instruction Manual

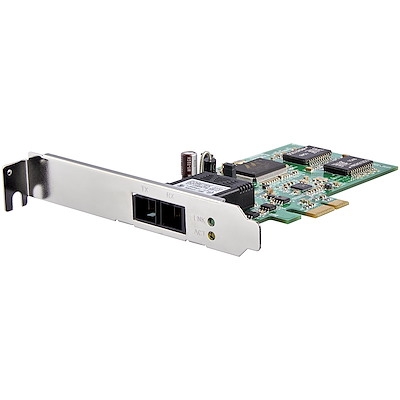

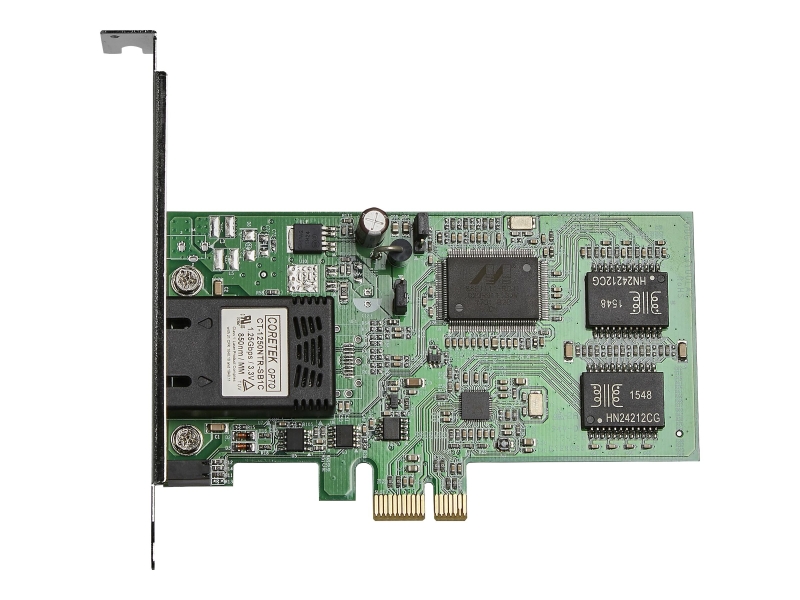

STARTECH PCIe GbE MULTIMODE SC FIBER NETWORK CARD 2YR
