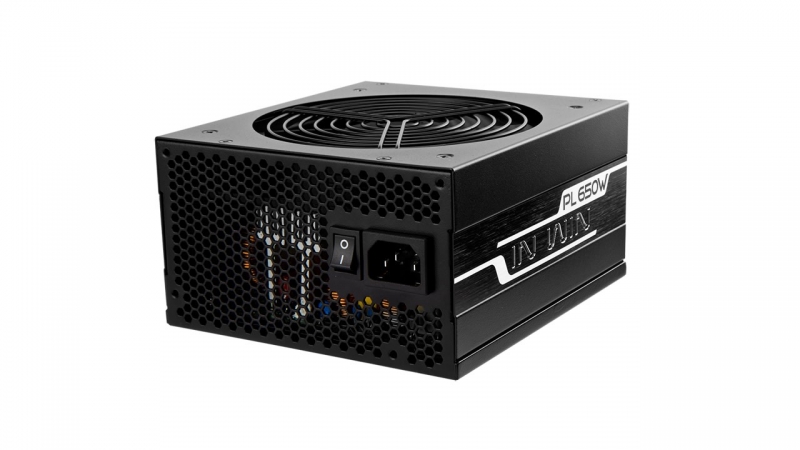

IN WIN INWIN PREMIUM SERIES 650W PSU BLACK 80+ GOLD CERTIFIED READY FULLY MODULAR ATX 12V V2.4/

SKU
254109
Brand
In Win
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

QUICK OVERVIEW

EPS 12 V2.92 SECC 5 YEARS WARRANTY PL650W
Add to Compare
PL 650W

Modern Aesthetic Design with Full RGB Lighting Effect

The Premium Series features a modern design, with the enclosure made of SECC steel. The black finish plus the full RGB In Win logo lighting effect will allow users to match with most themed builds.




Perfect RGB Synchronization

Customize Your PSU

The Premium Series has a fully RGB logo that radiates the color of your choice. The Premium Series is compatible with 4-pin RGB header(s) found on many ASUS Aura-ready motherboards or other vendors’ RGB-supported motherboards. As long as users activate the software of the motherboard manufacturers, the possibilities are endless.

*
* *

80 PLUS® Gold Certified Efficiency

The Premium Series delivers up to 90% efficiency, generating less heat and less cost on the electricity bill.

****

High Quality You can See

*

Smart Fan Control for Optimal Noise Reduction and Cooling Management

The 135mm durable fluid hypro bearing fan not only operates at the fastest speed, but also helps keep the internal components cool. It aims at offering a quiet operating environment for users.

*

5V and 3.3V DC to DC Design

The Premium Series’ DC to DC convert design provides perfect electrical conversion efficiency, offering superior dynamic response and supports a foundation for greater system stability.

High Quality You can Trust

Highly Reliable Japanese Aluminium Electrolytic Capacitors
The Premium Japanese capacitors with 105 °C rating helps stabilize the power at higher temperatures, provide increased longevity, reduce ripple and electrical instabilities and offer better power efficiency.

Fully Modular Cables for Quick and Easy Installation

The fully modular and low-profile cable design let users quickly and easily install without any difficulty

*

A 5-Year Warranty

We are proud of the quality of the Premium Series power supplies, so much so, that we offer a 5-year warranty to backup our claim of developing a superior quality product, long-term reliability and dependable performance.

*

Superior Air Flow

The 135mm durable hypro bearing fan exhausts the generated heat from the power supply, optimizing excellent cooling performance.

***

Cable Information


　

Specifications

Model PL 650W PL 750W PL 850W
Total Power 650W 750W 850W
Material SECC
Type ATX12V V2.4/
EPS12 V2.92
Cable Management Fully Modular
PFC Active PFC ( > 0.9)
Efficiency 80 PLUS Gold (up to 90%)
MTBF (Hours) >100,000hr
AC Input 100 - 240Vac. 50-60Hz
Hold-up time (ms) > 16ms
Fan 135mm Hypro Bearing Fan
Typical Load Fan Noise(dB) < 25dB
Operating Temperature Range (°C) 0~50 °C
Full Protection OCP/ OVP / UVP / SCP / OTP / OPP
Safety Certifications cTUVus / TUV / CB / BSMI / CE / FCC / EAC / RCM / CCC
Dimensions
(L x W x D)		 165 x 150 x 86mm
Warranty 5 Years
Connector 24 Pin Motherboard 1
8 (4+4) Pin CPU 2
8 (6+2) Pin PCI-E 4
4 Pin Peripheral 6
SATA 6
Floppy Power 2
RGB LED Controller 2
Light 1
* In Win products comply with RoHS regulations
* Specifications may vary based on different regions
