DESCRIPTION

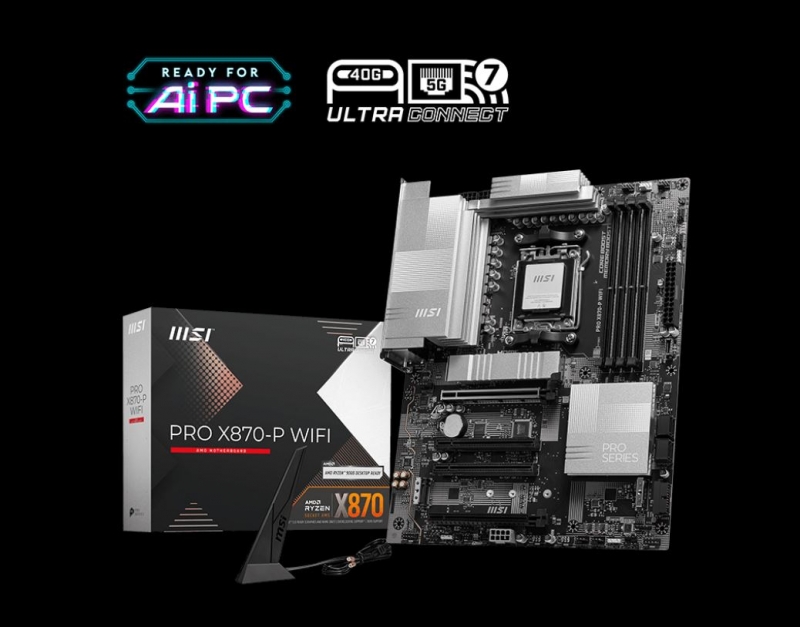

MSI PRO X870-P WIFI, AMD AM5 ATX Motherboard 4x DDR5~256GB, 4x PCIe x16, 3x M.2, 4x USB 3.2,4x USB 2.0, 2x USB-C

Chipset
AMD X870

CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot
4x PCI-E x16 slot

Audio
Realtek® ALC897, 7.1-Channel High Definition Audio

Storage
3x M.2

RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN
Realtek® 8126VB 5G LAN

WIRELESS LAN & BLUETOOTH
Wi-Fi 7
Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE
4x EZ Debug LED

OPERATING SYSTEM
Support for Windows® 11 64-bit

PCB Info
ATX
243.84mmx304.8mm
