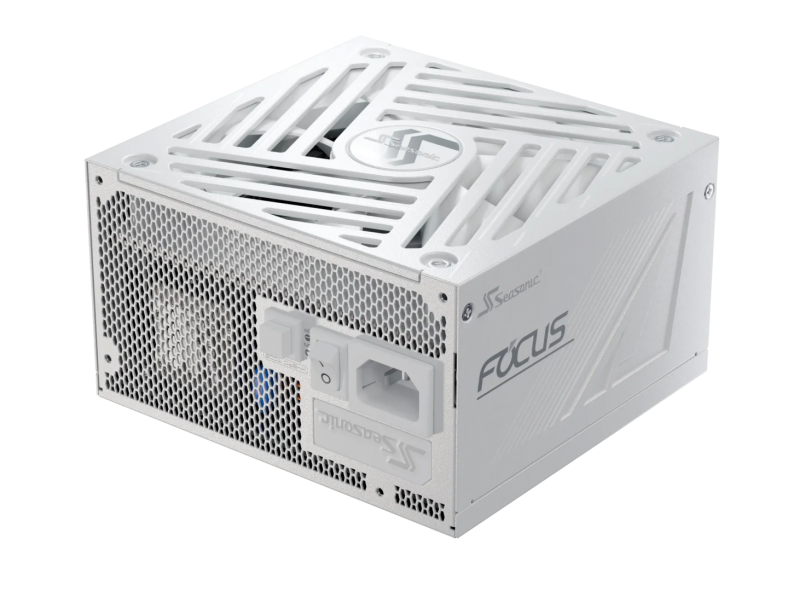

Seasonic 850W Focus GX-850 V4 WHITE Fully-Modular 80 PLUS Gold ATX3.1/PCIe 5.1 PSU
FOCUS GX White ATX 3
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX White Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2 × 6 cable, our new OptiSink technology and a stunning white finish. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.
SPECIFICATIONS
PlatinumTechnical Specifications | ||
80PLUS ® | Gold | |
Cybenetics Efficiency Level | TBA | |
Cybenetics Noise Level | TBA | |
Form Factor | ATX/EPS | |
Fan Information | Fan Size | 135 mm |
Fan Control | Digital Hybrid Fan Control | |
Fan Bearing | Fluid Dynamic Bearing | |
Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
Cable Information | Modularity | Fully Modular |
Cable type | Individual White Cables with Braided Pattern | |
Electrical Features | Operating Temperature | 0 - 50 °C |
MTBF @ 25 °C, excl. fan | 100,000 hours | |
AC Input | Full Range | |
Protection | OCP, OPP, OTP, OVP, SCP, UVP | |
Safety and Environmental | Safety and EMC | BSMI, CB, CCC, CE, cTUVus, EAC, FCC, TUV |
Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE | |
Warranty | 10 Years | |
Power Output | ||||||
AC Input | Voltage: 100 V - 240 V | |||||
Current: 11 - 5.5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power | 20 A | 20 A | 70 A | 0.3 A | 3 A | |
100 W | 840 W | 3.6 W | 15 W | |||
Total continuous power | 850 W | |||||
