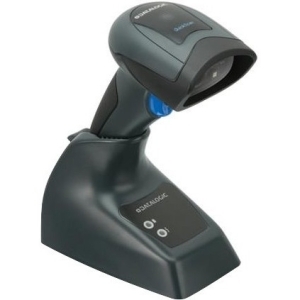

Datalogic Qbt2430 2d Usb Kit Bt Blk Qbt2430-bk-btk1

SKU
230561
Brand
MPN
QBT2430-BK-BTK1
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$767.00
Buy Now And Earn 767 Reward Points!

QBT2430 2D USB KIT BT BLK

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.
Basic
Barcode Dimension: 1D
  2D
Bluetooth: Yes
Brand Name: Datalogic
Colour: Black
Connectivity Technology: Wireless
Host Interface: USB
Image Sensor: Imager
Product Family: QuickScan I
Product Type: Handheld Barcode Scanner
Scan Pattern: Omni-directional
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Rechargeable: Yes
Maximum Number of Scans per Full Charge: 30000
General Information
Brand Name: Datalogic
Manufacturer Part Number: QBT2430-BK-BTK1
Manufacturer Website Address: http://www.datalogic.com
Manufacturer: Datalogic S.p.A
Product Line: QuickScan I
Product Model: QBT2430
Product Name: QuickScan I QBT2430 Handheld Barcode Scanner
Product Type: Handheld Barcode Scanner
Interfaces/Ports
Host Interface: USB
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards: IP42
Environmentally Friendly: Yes
Network & Communication
Bluetooth: Yes
Physical Characteristics
Colour: Black
Depth: 91 mm
Height: 163 mm
Weight (Approximate): 200 g
Width: 41 mm
Power Description
Input Voltage: 14 V DC
Power Source: Battery
Technical Information
Barcode Dimension: 1D
  2D
Barcode Symbology Supported: 1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR Code
  • China Han Xin Code
Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Connectivity Technology: Wireless
Depth of Field: 20 mm - 160 mm@0.25 mm - Data Matrix
  5 mm - 150 mm@0.13 mm - Code 39
Image Sensor: Imager
Maximum Scan Resolution: 0.10 mm
Scan Pattern: Omni-directional
