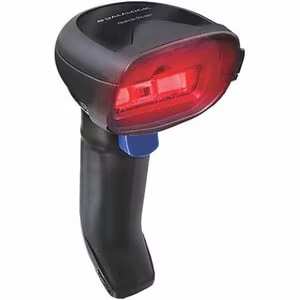

Datalogic QUICKSCAN QD2220 KIT LINEAR IMAGER USB-ONLY BLACK KIT INCLUDES SCANNER USB CABLE 90A052065 AND STAND STD-QW25-BK QD2220-BKK1S

SKU
417412
Brand
MPN
QD2220-BKK1S
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$163.00
Buy Now And Earn 163 Reward Points!

QUICKSCAN QD2220 KIT LINEAR IMAGER USB-ONLY BLACK KIT INCLUDES SCANNER USB CABLE 90A052065 AND STAND STD-QW25-BK

TAILORED LINEAR IMAGING TECHNOLOGY

Today there is an increased trend towards 2D bar codes, however, linear bar codes are still widespread in Retail POS checkout applications. Long bar codes are also commonly used in a variety of applications including utility bills, document processing and packaging. These long barcodes are a challenge for full area imagers to read due to their narrow field-of-view and shorter depth-of-field.

THE MOST PROMPT RESPONSE AT THE POS CHECK-OUT

The QuickScan QD2200 imager is the 1D entry-level corded imager from Datalogic with a superior scanning performance in its category. It reliably reads any type of 1D barcode from up close to a distance with ease in capturing long bar codes

Unlike other devices on the market, this imager provides full control to the operator, from the linear aiming to the most prompt visual and audible good-read feedback. It seamlessly reads through plexiglass barriers and can scan electronic coupons from smartphone screens at an incredibly affordable price.

COMFORT AND RELIABILITY

Lightweight and easy to handle, the QuickScan QD2200 is very responsive at the pull of the trigger, providing a superior robustness for this class of products where the device is mostly stressed, because of the accurate design and quality of parts.

Offering simple configuration and ease of use, this robust entry-level scanner delivers continuous operation capabilities with no failures.

Finally, the QuickScan QD2200 imager will prove to be the best longterm choice, by cutting down-time, no read/misread management time, and service costs.

Features
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser-free design provides high-performance scanning without the risk of eye injury
Guides & Documents
Interfaces/Ports
Host InterfaceUSB
Power Description
Input Current165 mA
Standby Current40 mA
Technical Information
Connectivity TechnologyCable
Light SourceLED
Scanner RangeStandard Range
Scan PatternLinear
Image Sensor TypeCCD
Imager
Illumination TypeLED
Stand IncludedYes
Illumination ColorRed
Cable Type IncludedUSB
Scanning Capability1D
Reading Angle (Skew)65°
Reading Angle (Pitch)65°
Reading Angle (Roll)45°
Motion Tolerance1016 mm/s
Maximum Ambient Light120000 lux
Minimum Print Contrast15%
Minimum Element Resolution (Code 39)0.10 mm
Maximum Element Resolution (Code 39)0.51 mm
Physical Characteristics
Weight (Approximate)123 g
Form FactorHandheld
Product ColorBlack
Color FamilyBlack
Miscellaneous
Application/UsageCommercial Service
Hospitality
Industrial
Retail
Government
Ingress Protection (IP) RatingIP42
General Information
Product TypeBarcode Scanner Kit
Manufacturer Part NumberQD2220BKK1S
Manufacturer Website Addresshttp://www.datalogic.com
ManufacturerDatalogic S.p.A
Product ModelQD2220-BKK1S
Product NameQuickScan QD2220-BK Barcode Scanner
Product LineQuickScan I
Product Series2200
Brand NameDatalogic
