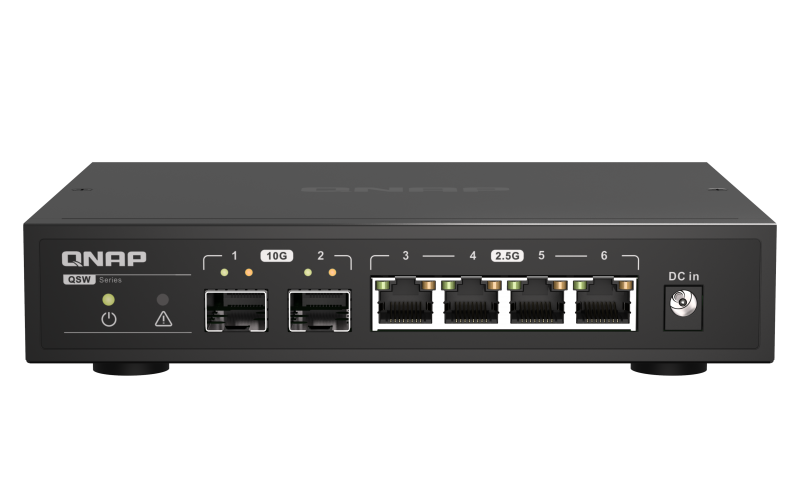

QNAP 6-PORT UNMANAGED SWITCH, 10GbE SPF+(2), 2.5GbE(4), 2YR WTY QSW-2104-2S

SKU
390530
Brand
MPN
QSW-2104-2S
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$296.00
Buy Now And Earn 296 Reward Points!

QSW-2104-2S


  • Download Datasheet
  • Download Datasheet
  • Download Datasheet
Management Type Unmanaged
Number of Ports 6
10GbE SFP+ 2
2.5GbE (RJ45) 4
Power Supply Description Adapter
Max. Power Consumption 12W
Input Power Type DC
Input Voltage Range 12V/1A
MAC Address Table 16K
Total Non-Blocking Throughput 30Gbps
Switching Capacity 60Gbps
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fanless
Supported Standards IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10GBase-T
IEEE 802.3az Energy Efficient Ethernet (EEE)IEEE
SFP Transceiver 1000BASE-SX
SFP Transceiver 1000BASE-LX
SFP Transceiver 1000BASE-T Copper RJ45 GBIC
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status
Dimensions (HxWxD) 34 x 180 x145 mm
Weight (Net) 0.713 kg
Weight (Gross) 1.01 kg
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 5~90% Non-condensing
Certifications FCC, CE, BSMI, VCCI, LVD,CCC,KCC
Electromagnetic Compliance Class B
Jumbo Frames 9K
Warranty 2 Years
QNAP 6-PORT UNMANAGED SWITCH, 10GbE SPF+(2), 2.5GbE(4), 2YR WTY
