HPE Aruba CX 6200 R8Q72A 14.0 Ports Manageable Ethernet Switch - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 2 SFP Slots - 23 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, R8Q
Aruba CX 6200 R8Q72A 14.0 Ports Manageable Ethernet Switch - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 2 SFP Slots - 23 W Power Consumption - Twisted Pair, Optical Fiber - Rack-mountable, Wall Mountable - Lifetime Limited Warranty

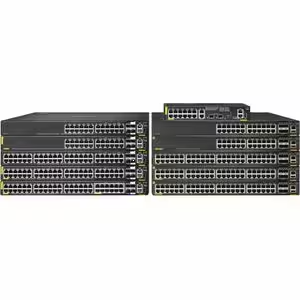

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the CX 6200 switches provide an enterprise-class access layer solution that's simple and secure.
Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the stackable CX 6200 switches are part of the Aruba CX switching portfolio. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the CX 6200 brings industry leading monitoring and troubleshooting capabilities to the access layer.
A powerful Aruba Gen7 ASIC architecture delivers reliable performance and enterprise-class feature support with flexible programmability for tomorrow's applications. The CX 6200 is designed for simple deployment using the intuitive Aruba CX Mobile App that speeds install, configuration and stacking of up to 8 switches. The CX 6200 switch series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks. Fixed switches support up to 30W of PoE per port. Flexible, modular switches offer hotswappable power supplies and fans for enhanced resiliency and redundancy, and up to 60W of PoE per port to power the latest IoT devices, security cameras, and wireless APs.
Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
- Enterprise-class connectivity with support for ACLs, robust QoS and common protocols such as static and Access OSPF routing
- Scalability with 8-member switch VSF stacking for up to 384 downlink ports
- Convenient built-in 1G/10G uplinks and up to 30W PoE (Class 4) per port on fixed power switches
- Modular switches support 1G/10G uplinks, LRM, MACsec 256, and up to 60W PoE (Class 6) per port
- Intelligent monitoring, visibility, and troubleshooting with Aruba Network Analytics Engine
- Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
- Simple, one touch deployment with the Aruba CX Mobile App
- Automated configuration and verification with Aruba NetEdit
- Secure and simple access for users and IoT with Aruba Dynamic Segmentation
| Manageable | Yes |
| Features | Fanless |
| Expansion Slot Type | SFP |
| Number of Total Expansion Slots | 2 |
| Number of SFP Slots | 2 |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 14.0 |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| 14 x Gigabit Ethernet Network |
| Network Technology | 10/100/1000Base-T |
| 10GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1ab |
| IEEE 802.1ae | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.3bt | |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3az |
| Weight (Approximate) | 3.24 kg |
| Form Factor | Rack-mountable |
| Wall Mountable | |
| Height | 43.9 mm |
| Width | 43.9 mm |
| Depth | 305 mm |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 23 W |
| Application/Usage | Campus |
| Enterprise | |
| Branch Office | |
| IP Phone | |
| Data Center | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | R8Q72A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | R8Q72A |
| Product Name | 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch |
| Product Series | CX 6200 |
| Brand Name | Aruba |
