Asus ROG NVIDIA GeForce RTX 4070 Ti SUPER Graphic Card - 16 GB GDDR6X - 7680 x 4320 - 2.70 GHz Boost Clock - 256 bit Bus Width - PCI Express 4.0 - DisplayPort - 3 x DisplayPort - HDMI ROG-STRIX-RTX4070TIS-O16G-GAMING
Asus ROG NVIDIA GeForce RTX 4070 Ti SUPER Graphic Card - 16 GB GDDR6X - 7680 x 4320 - 2.70 GHz Boost Clock - 256 bit Bus Width - PCI Express 4.0 - DisplayPort - 3 x DisplayPort - HDMI

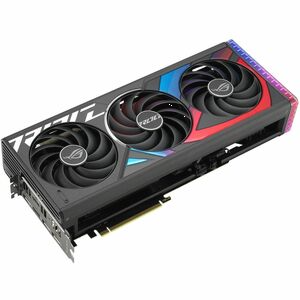

ROG Strix GeForce RTX™ 4070 Ti SUPER 16GB GDDR6X OC Edition
ROG Strix GeForce RTX™ 4070 Ti SUPER 16GB GDDR6X OC Edition buffed-up design with chart-topping thermal performance
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- 4th Generation Tensor Cores:Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- OC edition: Boost Clock 2700 MHz (OC Mode)/ 2670 MHz (Default Mode)
- Axial-tech fans scaled up for 31% more airflow
- 3.15-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
WITH THE INCREDIBLE SUM OF ITS PARTS
The ROG Strix GeForce RTX™ 4070 Ti SUPER brings a whole new meaning to going with the flow. Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance. The unleashed reign of the NVIDIA Ada Lovelace architecture is here.
NVIDIA Ada Lovelace Architecture | Designed to Give You Superpowers
New Streaming Multiprocessors
- Up to 2X performance and power efficiency
Fourth-Gen Tensor Cores
- Up to 4X performance with DLSS 3 vs. brute-force rendering
Third-Gen RT Cores
- Up to 2X ray tracing performance
Axial-tech Upgrades | A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 31% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology | Orchestrated Chill
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence.
3.15-slot Design | Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4070 Ti SUPER GPU so that it can be efficiently whisked away by the three Axial-tech fans
Premium Power Delivery | 1st Responder
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries
Compact PCB | Packs a Punch
Component and trace layouts have been optimized on to a short PCB to reduce power losses and let heat escape through a massive backplate vent
Metal Exoskeleton | Ultra-rigid
A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow
FanConnect II | Hook up
Two PWM Fan Connect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks
Reinforcements | Additional PerksA GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bio
- Cost-efficient NVIDIA GeForce provides effective Blu-ray playback acceleration and great gaming experience
- Built-in low-power fan keeps the board cool and ensures a long-lasting usability
- Built-in 16 GB memory for a crisp and detail display
Power Supply Wattage | 750 W |
Power Connector | 1x 16-pin |
Standard Memory | 16 GB |
Memory Technology | GDDR6X |
Bus Width | 256 bit |
Platform Supported | PC |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Host Interface | PCI Express 4.0 |
HDMI | Yes |
DisplayPort | Yes |
Number of DisplayPort Outputs | 3 |
Number of HDMI Outputs | 2 |
Chipset Manufacturer | NVIDIA |
Chipset Model | RTX 4070 Ti SUPER |
Chipset Line | GeForce |
Chipset Series | RTX |
GPU Boost Clock | 2.70 GHz |
API Supported | OpenGL 4.6 |
Features | Triple-fan Cooler |
Number of Monitors Supported | 4 |
Maximum Digital Display Resolution | 7680 x 4320 |
CUDA Cores | 8448 |
Form Factor | Plug-in Card |
Length | 336 mm |
Cooler Type | Fan Cooler |
Height | 63 mm |
Width | 150 mm |
Slot Space Required | Triple |
Product Type | Graphic Card |
Manufacturer Part Number | ROGSTRIXRTX4070TISO16GGAMING |
Manufacturer Website Address | http://www.asus.com/au |
Manufacturer | ASUS Computer International |
Product Name | Strix GeForce RTX 4070 Ti SUPER 16GB GDDR6X OC Edition Graphic Card |
Product Line | Strix |
Brand Name | Asus ROG |
