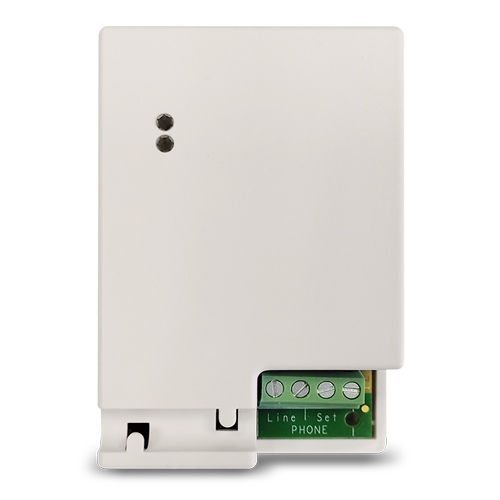

RISCO LIGHTSYS PLUS PSTN MODULE RP432PSTN00A
SKU
406773
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
The plug-in PSTN module enables the panel to communicate with a central station (ARC) using common format protocols (SIA, Contact ID). The PSTN module can be used as a primary communication channel or as a back up to the Cloud connection. in case of communication failure. The module should be plugged into the GSM/PSTN module slot on the LightSYS+ panel. In installations that require both PSTN and GSM modules, the GSM module should be installed on the COB (Cellular on Bus).
Power Supply | 13.8 VDC |
Current Consumption | Standby: 30mA Comm.: 100mA |
Operating Temperature | -10◦C > 55◦C |
Storage Temperature | -40◦C > 60◦C |
Relative Humidity | ≤ 75% |
Measurements | 88mm x 52mm x 16.5 mm |
RISCO LIGHTSYS PLUS PSTN MODULE
