  • Ryzen 5 7600X Processor: Socket AM5, Desktop CPU (Boxed), 6 Core/ 12 Threads, Unlocked, Base Clock: 4.7GHz / Boost Clock: 5.3GHz, AMD Radeon Graphics, 32MB L3 Cache, 105W, No Cooler Included Ryzen 5 7600X

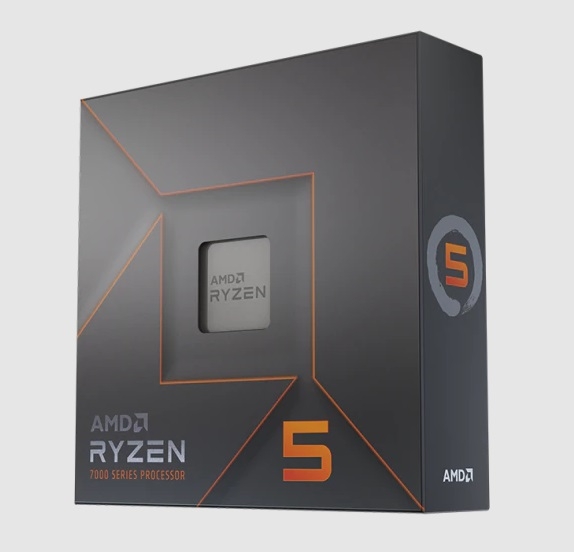

main product photo

Ryzen 5 7600X Processor: Socket AM5, Desktop CPU (Boxed), 6 Core/ 12 Threads, Unlocked, Base Clock: 4.7GHz / Boost Clock: 5.3GHz, AMD Radeon Graphics, 32MB L3 Cache, 105W, No Cooler Included Ryzen 5 7600X

SKU
390886
Brand
Amd
Manufacturer Link
MPN
Ryzen 5 7600X
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$362.00
Buy Now And Earn 362 Reward Points!
Add to Compare
Processor: Socket AM5, Desktop CPU (Boxed), 6 Core/ 12 Threads, Unlocked, Base Clock: 4.7GHz / Boost Clock: 5.3GHz, AMD Radeon Graphics, 32MB L3 Cache, 105W, No Cooler Included
General Specifications
Platform
Desktop
Market Segment
Enthusiast Desktop
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 5 Desktop Processors
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
"Raphael AM5"
Architecture
"Zen 4"
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5.3GHz
Base Clock
4.7GHz
L1 Cache
384KB
L2 Cache
6MB
L3 Cache
32MB
Default TDP
105W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
2
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
X670E
X670
B650E
B650
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)
Not included
Max. Operating Temperature (Tjmax)
95°C
Launch Date
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
1
Native SATA Ports
0
Native PCIe® Lanes (Total/Usable)
28/24
Additional Usable PCIe Lanes from Motherboard
AMD X670E

12x Gen4

AMD X670

12x Gen4

AMD B650E

8x Gen4

AMD B650

8x Gen4

NVMe Support
Boot, RAID0, RAID1, RAID10
Memory Channels
2
Max. Memory
128GB
System Memory Subtype
UDIMM
Max Memory Speed
1x1R

5200 MT/s

ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics
Yes
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
GPU Base
400 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
Product IDs
Product ID Boxed
100-100000593WOF
Product ID Tray
100-000000593
Key Features
Supported Technologies
AMD EXPO™ Technology
AMD Ryzen™ Technologies
