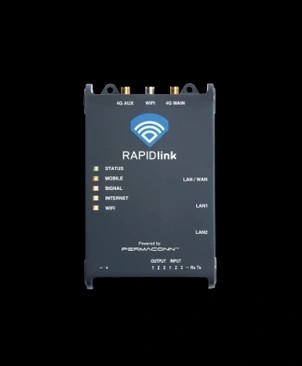

PERMACONN S117281 HIGH-SPEED 4G ROUTR DUAL SIM 2YR
MANAGED 4G LTE ROUTER Connectivity Made Easy RAPIDlink managed 4G LTE routers make connectivity easy for remote sites, standalone networks, or mission-critical applications where high network availability and 4G failover are required.
Supplied ready for use with in-built 4G connectivity and our secure cloud portal for 24/7 remote management, RAPIDlink routers are fast and easy to install,
configure and manage.
ADDITIONAL INFORMATION
> Billing dirt with Permaconn not DAS. Cut out the middle man.
> Billing is monthly in advance. Data Packs can be upgraded, downgraded or cancelled at any time. For full details see www.rapidlink.com.
> Public IPs are available upon request with a free DDNS service hosted by Permaconn.
> All figures in AUD, ex GST direct from Permaconn on the attached brochure.
| 4G LTE-FDD | Frequency B1(2100MHz), B2(1900MHz), B3(1800MHz), B4(1700MHz) B5(850MHz), B7(2600MHz), B8(900MHz), B28(700MHz) Bandwidth Max 150Mbps (DL) Max 50Mbps (UL) |
| 3G HSPA+ | Frequency B1(2100MHz) B5(850MHz) B8(900MHz) Bandwidth Max 42Mbps (DL) Max 5.76Mbps (UL) |
| Antennas | 2 antennas for Cellular (MIMO) + 1 for Wi-Fi |
| WiFi Capability | Supports: IEEE 802.11b/g/n Frequency: 2.4GHz |
| Ethernet Specs | Ports 3 x RJ-45 ports Physical layer 10/100 Base-T Data rate 10/100 Mbps Interface Auto MDI/MDIX |
| Routing/Failover | IP pass-through; NAT, IP Port Forwarding; DHCP; DNS Client and Server |
| Failover | Automatic failover/ failback from IP (WAN) to 4G |
| Managmement | Remote configuration via RAPIDlink web portal |
| Auxiliary Input | 3 x 24Hr inputs state change detected every second EOL 3.3K |
| Auxiliary Output | 3 x Open Collector outputs @ 50mA (max). Function control using RAPIDlink web portal. |
| Dimensions | 110mm (h) x 25mm (d) x 80mm (w) |
| Weight | 180g |
| Power | 10 to 15V DC |
| Consumption | Idle 0.12A @13.8V DC |
| Transmitting | 0.35A @ 13.8V DC |
| Operating Environment | 0°C - 50°C @ 15% to 85% humidity (non condensing) |
