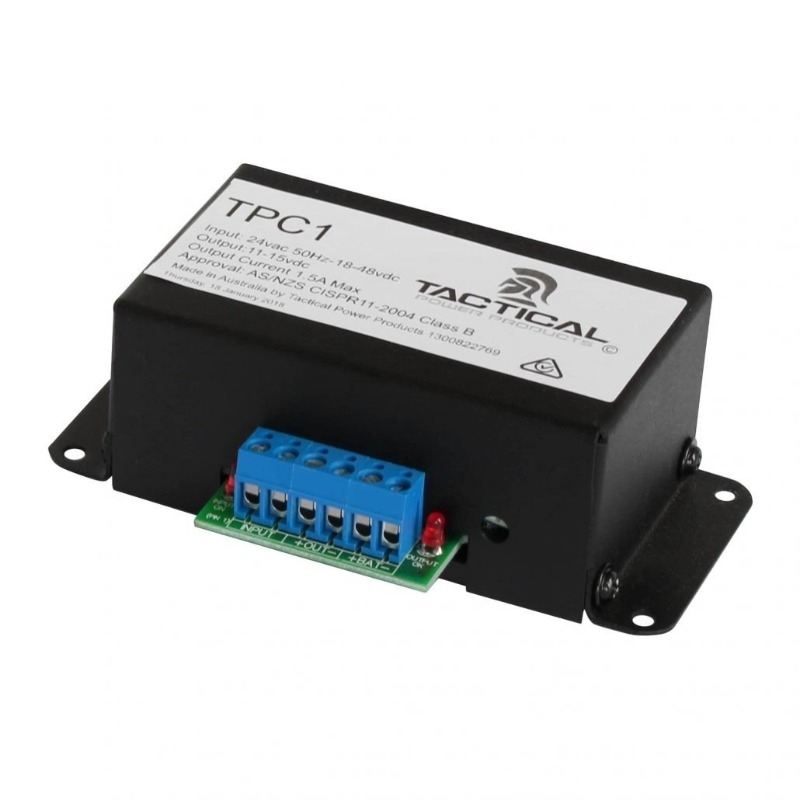

Created with CCTV, Access Control & Electronic Locking applications in mind, the TPC-1    DC – DC / AC – DC Converter has been designed to convert either 24Vac or 18-48Vdc to a reliable, regulated output voltage between 11-15Vdc (12V nominal) rated at 1.5A.

Note: Input voltage must not exceed 48Vdc – permanent damage may result.

Featuring output over current, short circuit and over temperature protection, TPC-1 will automatically reset when the fault condition is rectified.

Output voltage may be adjusted to 13.8Vdc, allowing a 12V SLA (Sealed Lead Acid) battery to be charged via the in-built battery charger output terminals.
