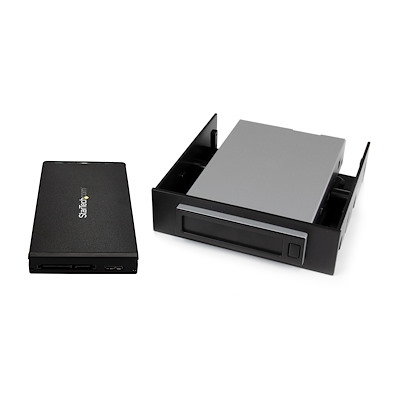

STARTECH.COM HOT SWAP HARD DRIVE BAY 2.5" SATA SSD HDD - USB 3.1 ENCLOSURE 2YR S251BU31REM
SKU
390543
Brand
MPN
S251BU31REM
Warranty
Standard Manufacturer's Warranty
$104.00
Buy Now And Earn 104 Reward Points!
- Hot-swap your 2.5" SSD and HDD drives
- Unique enclosure style design provides the option to use as an internal mobile rack or an external USB 3.1 enclosure
- Access your data offline with a portable USB 3.1 (10Gbps) drive enclosure
- One USB-C to Micro-USB cable and one USB-A to Micro-USB cable included for compatibility with your USB-C and USB-A laptop
- Front-mount drive bay design installs into any standard 3.5" or 5.25" bay
- Push-button drive ejection from the front-mount bay
- High-quality vented metal enclosure provides enhanced heat dissipation
- Compatible with SATA revision 1/2/3 (1.5/3.0/6.0Gbps) drives
- Supports 2.5" form factor SATA hard drives (HDD) and solid-state drives (SSD)
Warranty Information
Warranty
2 Years
Connector(s)
Drive Connectors
1 - SATA Data & Power Combo (7+15 pin)
Host Connectors
1 - USB 3.2 USB Type Micro-B (10 pin, Gen 2, 10 Gbps)
1 - SP4 (4 pin, Small Drive Power)
1 - SATA (7 pin, Data)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 65°C (14°F to 149°F)
Humidity
Operation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
Storage Humidity: 5% ~ 95% RH
Hardware
Interface
SATA
USB 3.2 Gen 2
Bus Type
USB 3.2 Gen 2
Front Door Key Lock
No
Number of Drives
1
Drive Size
2.5in
Compatible Drive Types
SATA
Drive Installation
Removable
Supported Drive Height(s)
5mm
7mm
9.5mm
Chipset ID
ASMedia - ASM1351
Indicators
LED Indicators
1 - Power(Green)
1 - Activity(Red)
Packaging Information
Shipping (Package) Weight
1.6 lb [0.7 kg]
Package Quantity
1
Package Length
9.4 in [23.9 cm]
Package Width
6.2 in [15.7 cm]
Package Height
3.1 in [7.9 cm]
Performance
Maximum Data Transfer Rate
10Gbps
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
TRIM Support
Yes
4Kn Support
Yes
Type and Rate
SATA III (6 Gbps)
Max Drive Capacity
Currently tested with hard drives up to 2TB at 7200 RPM.
MTBF
100,000 hours
Physical Characteristics
Color
Black
Material
Aluminum and Plastic
Max Drive Height
0.4 in [9.5 mm]
Product Length
6.1 in [15.5 cm]
Product Width
5.7 in [14.6 cm]
Product Height
1.6 in [4.2 cm]
Weight of Product
15.0 oz [426.0 g]
Power
Power Source
USB-Powered
Software
OS Compatibility
OS independent; No software or drivers required
Special Notes / Requirements
System and Cable Requirements
Available 3.5" or 5.25" front bay
Available internal SATA data connector
Available SATA or LP4 Molex internal power connector
Note
Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.
What's in the Box
Included in Package
1 - 2.5” SATA enclosure
1 - 3.5” front-panel drive bay
1 - 3.5” to 5.25” front bay adapter bracket
1 - SATA data cable
1 - SATA power cable
1 - Molex power cable
1 - USB-C to Micro-B cable
1 - USB-A to Micro-B cable
1 - set of drive-mounting hardware
4 - bay-mounting screws
4 - bracket-mounting screws
1 - quick-start guide
