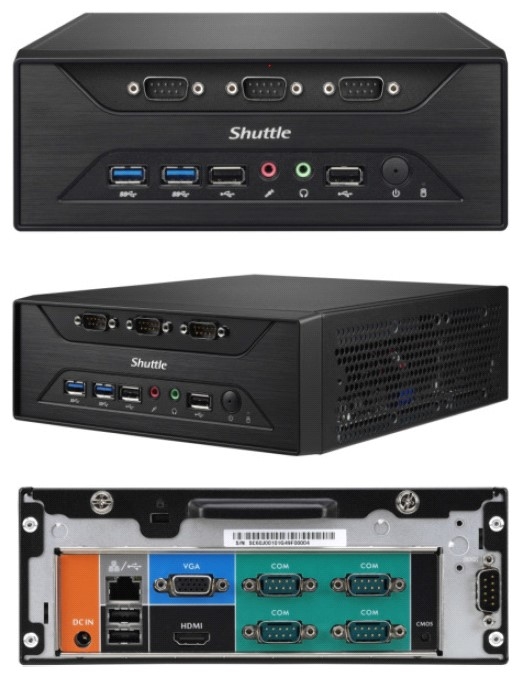

main product photo

Shuttle Xc60j Fanless 3l Pc - Celeron J3355 2x Ddr3l Sodimm 1x 2.5 Or 3.5" Hdd M.2 8x Rs232 1x

SKU
269660
Brand
Shuttle
Manufacturer Link
MPN
XC60J
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$404.00
Buy Now And Earn 404 Reward Points!

QUICK OVERVIEW

VGA + 1x HDMI USB3.0 WLAN optional VESA optiona XC60J
Add to Compare


Completely Fanless, Highly Connectable Slim PC

The new 3-liter slim PC XC60J features robust performance with a fanless design, powered by the latest Intel® Apollo Lake SoC 14nm processor. This new model provides excellent peripheral connectivity via built-in eight COM ports to power highly interactive Kiosk, vending machine, and POS applications. With integrated Intel® HD graphics, the XC60J can support 4K/Ultra HD video playback and deliver dual displays via HDMI and D-sub. The XC60J offers two USB 3.0, four USB 2.0, SATA 6Gbps, and built-in Intel® Gigabit LAN. Built-in M.2 2280 Type M and M.2 2230 type A expansion slots allow users to install SSDs, Wi-Fi modules, or other such devices to boost the capabilities of XC60J. It is 24/7 certified, operable 0-40 ⁰C environments, and VESA mountable, ideal for versatile applications.

Intel® Apollo Lake Platform Technology

The all-new XC60J supports Intel® Apollo lake platform technology, equipped with 14 nm Intel® Celeron® J3355 dual-core processor. Support 1.35V DDR3L low-voltage memory with a maximum capacity up to 8GB, able to reduce thermal energy production and overall energy consumption.

Support up to 8 COM ports

The XC60J features seven RS232 and one RS232/RS422/RS485 ports which support 0V/5V/12V as well as four USB 2.0 and two USB 3.0 ports. Connect to barcode scanners, receipt printers, keypads, and other peripherals. The XC60J is easily configured into peripheral-heavy POS, Kiosk, and Digital Signage systems.

Support HEVC/H.265 high-definition video playback

The Intel® Apollo Lake processor is built-in HEVC/H.265 and VP9 video decoding. The XC60J can decode the video with the latest generation codecs and reduce CPU utilization with lower power consumption.

Operable in 0-40 ⁰C

The XC60J is suitable for 0 ~ 40 ℃ working environment to meet the environmental operation demands of commercial applications.
*With use of SSD and Wide Range Temp. SODIMM
　

High-speed data transmission interface

With Intel® Apollo Lake platform technology, the XC60J features native SATA 6Gbps and USB 3.0 high-speed storage interfaces. A USB 3.0 port which supports up to 5 Gbps and provides 10 times greater data access speed than a USB 2.0 port.

VESA Mount-Ready

The XC60J is VESA mount compliant and allows for versatile integration into hardware systems. This space saving capability is well-suited for digital signage applications with limited space.

Support Power on by RTC

By entering BIOS to set up the Power on by RTC, XC60J allows user to set a time to boot up the system, which can also be turned on and off with the Windows task scheduler. This feature will benefit on the electricity and energy saving as well as the elimination the cost of on-site service

Operating System support

-Windows 10 64bit
-Linux
　

Fanless Design

The XC60J uses a thermal module with cooled heat pipe and sink to transmit heat throughout the system quickly and evenly. The unique fanless design reduces the power consumption required by a fan as well as the cost of replacing fans. Use with solid-state disks and create an operational platform completely free of noise.

Support 4K Ultra HD

The XC60J is support 4K high resolution (3840x2160) via HDMI video output. Now with four times the resolution of Full HD, viewers can enjoy the super detailed and crystal clear imaging of 4K.

Support Dual Displays

Display imaging on up to two screens via HDMI and D-sub video outputs. Use an adaptor to convert HDMI into DVI interface for diversified signal selection.

Built-in two M.2 expansion slots

The XC60J is built-in one M.2 2280 with type M and one M.2 2230 type A/E slots to install M.2 SSD and a WiFi card or other compatible devices, proving a strong expansion capacity.

Support Intel® Gigabit LAN

The XC60J has built-in Intel® i211 Gigabit LAN and supports Wake On LAN to provide high-speed data transfer capability as well as a better compatibility for business network environment.

24/7 Nonstop Operation

The XC60J is officially approved for 24/7 permanent operation. Thanks to Shuttle’s low-power consumption design and provide a stable operating environment, this PC runs highly reliable for long-term demands of digital signage or other vertical applications.

The Watchdog—protecting system security

Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation and stability of the system at all times.


Completely Fanless, Highly Connectable Slim PC

The new 3-liter slim PC XC60J features robust performance with a fanless design, powered by the latest Intel® Apollo Lake SoC 14nm processor. This new model provides excellent peripheral connectivity via built-in eight COM ports to power highly interactive Kiosk, vending machine, and POS applications. With integrated Intel® HD graphics, the XC60J can support 4K/Ultra HD video playback and deliver dual displays via HDMI and D-sub. The XC60J offers two USB 3.0, four USB 2.0, SATA 6Gbps, and built-in Intel® Gigabit LAN. Built-in M.2 2280 Type M and M.2 2230 type A expansion slots allow users to install SSDs, Wi-Fi modules, or other such devices to boost the capabilities of XC60J. It is 24/7 certified, operable 0-40 ⁰C environments, and VESA mountable, ideal for versatile applications.
FORM FACTOR Mini-ITX MB
3.5 L chassis
PROCESSOR Intel Celeron J3355 10W CPU
　
CHIPSET Intel Apollo Lake SoC platform
MEMORY (2)DDR3L SO-DIMM slots 1866MHz support, dual channel up to 8GB
VIDEO OUTPUT HDMI + VGA port dual display
Integrated in CPU
AUDIO Realtek ALC662 2.1 channel High Definition Audio
ETHERNET Intel i211 Gigabit Ethernet
Support Wake-On-LAN function
STORAGE INTERFACE SATA 6Gb/s bandwidth
　
FRONT PANEL (2) USB 2.0 ports
(2) USB 3.0 ports
(3) RS232
(1) Microphone-In
(1) Earphone-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL (1) RJ45 Gigabit LAN port
(1) VGA
(1) HDMI
(2) USB 2.0 ports
(4) RS232
(1) RS232/RS422/RS485
(1) Clear CMOS button
(1) DC in
(2) Wireless Antenna fixture
DRIVE BAYS (1) 3.5"/2.5" HDD/SSD bay

　
DIMENSIONS 238(L) x 200(W) x 72(H) mm
Dimension drawing
POWER Input:100- 240V AC
19V/3.42A or Output: 12V/5.41A DC
65W 19V Adapter bundled
ACCESSORIES (1)XPC Quick Guide
(1)XPC DVD Driver
(1)Power cord
(1)65W Adapter
(1)Screw pack
Power cord
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type A,E Key socket
OS SUPPORT Windows10 64bit O.S
Linux
