SPECIFCATIONS

• Quasi Sinewave.
• 850VA.
• Tower only.
• USB comm's port and cable.
• Local View free software.
• Data line protection ports.
• 2 x 3 pin Aust output sockets.
• Includes 3 pin Australian input cord.

CONNECTIONS

1. Output sockets
2. USB port
3. Mains input cable
4. Circuit breaker
5. NTP data line suppressor
6. Fan


Control panel



1. Alarm 2. Operation with battery 3. Normal operation 4. On / Off 5. Load present 6. Load level (5 steps) 7. General Alarm 8. Battery fault / Replace the battery 9. Overload 10. Battery capacity 11. Normal mode / Battery mode (flashing) 12. Automatic Voltage / Regulation active

Technical data



Sn [kVA]	650 VA	800 VA	1000 VA	1500 VA	2000 VA
Pn [kW] (0 °C ÷ 35 °C)	360 W	480 W	600 W	900W	1200W
Input / output	1/1

Input
Mains voltage	177 V - 290 V
Rated frequency	50 / 60 Hz with automatic selection
Mains connection	Cable with plug

Output
Automatic Voltage Regulation (AVR)	•	•	•	•	•
Rated voltage	230 V ±10%
Rated frequency	50/60 Hz
Wave form	Step wave
Protection	Overload, significant discharge and short circuit
Sockets	650-850: 2 x Australian standard		1000-1500-2000: 4 x Australian standard

Batteries
Type	Sealed lead-acid maintenance free - expected life 3/5 years
Back-up time (1)	15 Min	20 Min	45 Min	55 Min	60 Min

Communication
Interface	•	USB
Local communication software	•	Local View
Telephone protection	•	NTP data line suppressor

UPS Cabinet
Dimensions (W x D x H) [mm]	100 x 290 x 145		145 x 345 x 165 mm	145 x 390 x 205 mm
Weight	5.2 kg	6 kg	9.7 kg	11.2 kg	12 kg

Standards
Safety	AS 62040-1
EMC	AS 62040-2
Product declaration	CE, C-Tick (N876)

　

Warranty

1 year limited warranty.

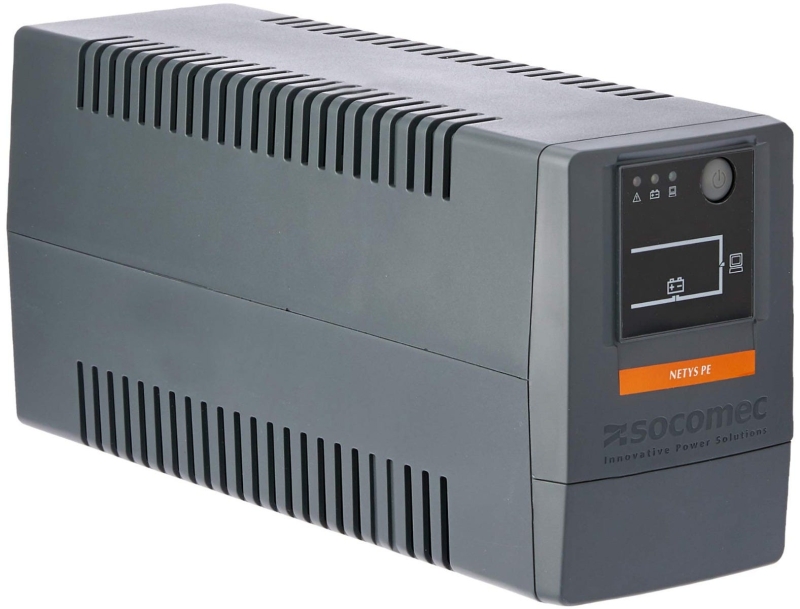

The NeTYS PE 850VA Tower UPS is line Interactive and the ideal way to protect IT applications at home, the office, or in retail environments from when the input power source or mains power fails. Perfect for CAD and graphics workstations, multimedia peripherals, LCD screens, monitors and Point of Sale systems. This unit provides 20 minutes of back-up time, see the Technical Data sheet below for details on the differences between each model.FEATURESCost-effective way to protect SOHO or POS applications.Easy to use control panel with graphical LCD/LED monitor.Protect from network power cuts and voltage fluctuations.Integrated AVR to stabilise output voltage, avoid drops when switching to battery.Simple connection: IEC 320 sockets for IT peripherals.Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage.SPECIFCATIONSQuasi Sinewave. 850VA. Tower only. USB comm's port and cable.Local View free software.Data line protection ports.2 x 3 pin Aust output sockets.Includes 3 pin Australian input cord.CONNECTIONS 1. Output sockets 2. USB port 3. Mains input cable 4. Circuit breaker 5. NTP data line suppressor 6. Fan  Control panel 1. Alarm 2. Operation with battery 3. Normal operation 4. On / Off 5. Load present 6. Load level (5 steps) 7. General Alarm 8. Battery fault / Replace the battery 9. Overload 10. Battery capacity 11. Normal mode / Battery mode (flashing) 12. Automatic Voltage / Regulation activeTechnical data Sn [kVA]650 VA800 VA1000 VA1500 VA2000 VAPn [kW] (0 °C ÷ 35 °C)360 W480 W600 W900W1200WInput / output1/1Input Mains voltage177 V - 290 VRated frequency50 / 60 Hz with automatic selectionMains connectionCable with plugOutput Automatic Voltage Regulation (AVR)•••••Rated voltage230 V ±10%Rated frequency50/60 HzWave formStep waveProtectionOverload, significant discharge and short circuitSockets650-850: 2 x Australian standard1000-1500-2000: 4 x Australian standardBatteries TypeSealed lead-acid maintenance free - expected life 3/5 yearsBack-up time (1)15 Min20 Min45 Min55 Min60 MinCommunication Interface•USBLocal communication software•Local ViewTelephone protection•NTP data line suppressorUPS CabinetDimensions (W x D x H) [mm]100 x 290 x 145145 x 345 x 165 mm145 x 390 x 205 mmWeight5.2 kg6 kg9.7 kg11.2 kg12 kgStandards SafetyAS 62040-1EMC AS 62040-2Product declarationCE, C-Tick (N876) Warranty1 year limited warranty.
