Size & Weight
MAIN UNIT SIZE – BODY ONLY (W X H X D)
35-1/2" x 2-1/2" x 3-1/2"
MAIN UNIT WEIGHT – BODY ONLY
5.29 lb
Amplifier
AMPLIFIER TYPE
S-Master™
POWER OUTPUT (TOTAL)
120 W
Interface
INPUT AND OUTPUT TERMINALS
HDMI™(ARC), Optical-audio input, USB type A
BLUETOOTH®
RX (receiver)
BLUETOOTH® VERSION
version 4.2
NFC
No
HDMI
NUMBER OF INPUT/OUTPUT
0/1 (ARC)
BRAVIA SYNC
Yes
HDMI CEC
Yes
Audio Formats
HDMI INPUT
Dolby® Digital, Dolby® Dual mono, LPCM 2ch
OPTICAL INPUT
Dolby® Digital, Dolby® Dual mono, LPCM 2ch
USB
WAV, MP3, WMA
BLUETOOTH® (RECEIVER)
SBC
Sound Function
SOUND MODE
Auto Sound, Theater, Music, Standard
SOUND EFFECT
Night Mode, Voice Mode
VIRTUAL SURROUND TECHNOLOGY
S-Force
Speaker Layout
SPEAKER STRUCTURE
2.0ch
BAR SPEAKER
1
Wireless Features
WIRELESS SURROUND
No
WIRELESS SURROUND (WITH OPTIONAL WIRELESS SPEAKERS)
No
WIRELESS MULTI-ROOM
No
Details
POWER CONSUMPTION
30 W
POWER CONSUMPTION(ON REMOTE START MODE)
0.5 W (Bluetooth® standby off/Control for HDMI™ off)
WALL-MOUNTABLE
Yes
What's In The Box
Remote Control
Batteries for remote commander
Optical Cable
AC Cord

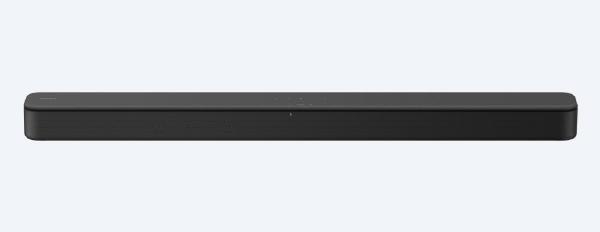

The HTS100F is a all-in-one Sound Bar with 120W of room-filling sound. Using S-Force Front Surround and a new bass-reflex design, this space-saving Sound Bar delivers clear and realistic audio, without complicated set-up. Thanks to 2 large woofers and high-quality dome tweeters, the HTS100F can reproduce audio with clarity, stereo separation and impact. The new bass-reflex ports also provides deep bass, without the bulk or need for a separate subwoofer.
⚫2.0ch Compact Sound Bar
⚫S-Force Front Surround, for big sound from only 2 front speakers
⚫1 x HDMI (ARC) connection, for simple set-up and operation
⚫Bluetooth, for wireless music playback from a Smartphone
⚫USB music playback
