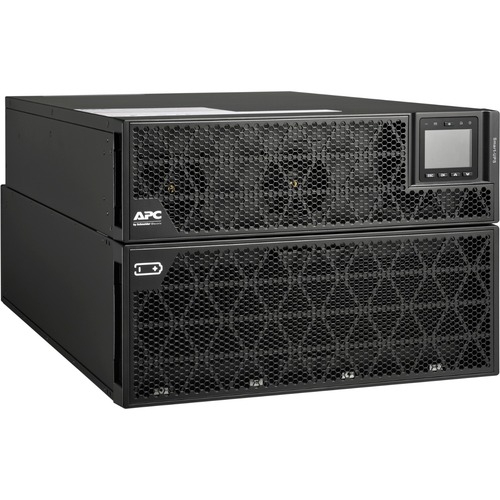

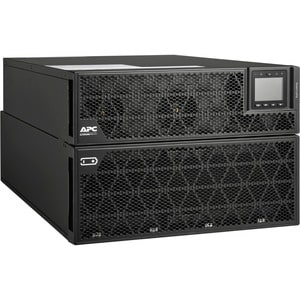

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 15 kVA - 7U Rack/Tower - 4 Hour Recharge - 230 V AC Input - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output - Pure Sine Wave - Serial Port SRTG15KXLI

SKU
401342
Brand
MPN
SRTG15KXLI
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $17,695.00 Regular Price $20,349.00
Buy Now And Earn 17695 Reward Points!

APC by Schneider Electric Smart-UPS Double Conversion Online UPS - 15 kVA - 7U Rack/Tower - 4 Hour Recharge - 230 V AC Input - 230 V AC, 380 V AC, 400 V AC, 415 V AC Output - Pure Sine Wave - Serial Port

High density, double-conversion on-line power protection with scalable runtime

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Guides & Documents
Controls/Indicators
Status Indicators

    LED Status Indicators:

    • Quickly Understand Unit
    • Power Status With Visual Indicators.
Miscellaneous
Software IncludedPowerchute
Interfaces/Ports
Serial PortYes
EPO PortYes
USB (HID Compliant) PortYes
Management
AlarmLow Battery
On Battery
Overload
Environmental Conditions
Maximum Operating Temperature40°C
Maximum Operating Elevation2.01 km
Maximum Storage Elevation15.24 km
Sound Emission (A-Weighted)58 dB(A)
Battery Information
Battery ChemistryLead Acid
Battery CharacteristicsHot-swappable
Replaceable BatteryYes
DC System Voltage192 V DC
Typical Battery Recharge Time4 Hour
Power Description
Input Voltage230 V AC
Output Voltage415 V AC
400 V AC
230 V AC
380 V AC
Waveform TypePure Sine Wave
Input Voltage Range160 V AC - 285 V AC
Output Frequency60 Hz
Input Frequency70 Hz
Physical Characteristics
Weight (Approximate)142.50 kg
Form FactorRack/Tower
Rack Height7U
Height306 mm
Width400 mm
Depth700 mm
Product ColorBlack
General Information
Product TypeDouble Conversion Online UPS
Manufacturer Part NumberSRTG15KXLI
Manufacturer Website Addresshttp://www.schneider-electric.com.au
ManufacturerSchneider Electric SA
Product NameSmart-UPS RT 15kVA 230V
Product LineSmart-UPS
Product SeriesRT
Brand NameAPC by Schneider Electric
Technical Information
Application/UsageIndustry
Critical System
Business
Medical
Network
Server
Voice/Data Network
IT Equipment
Overload ProtectionYes
Plug/Connector TypeHard Wire 5-wire (3P + N + E)
Transfer Time0 ns
