Warranty Information
Warranty
2 Years

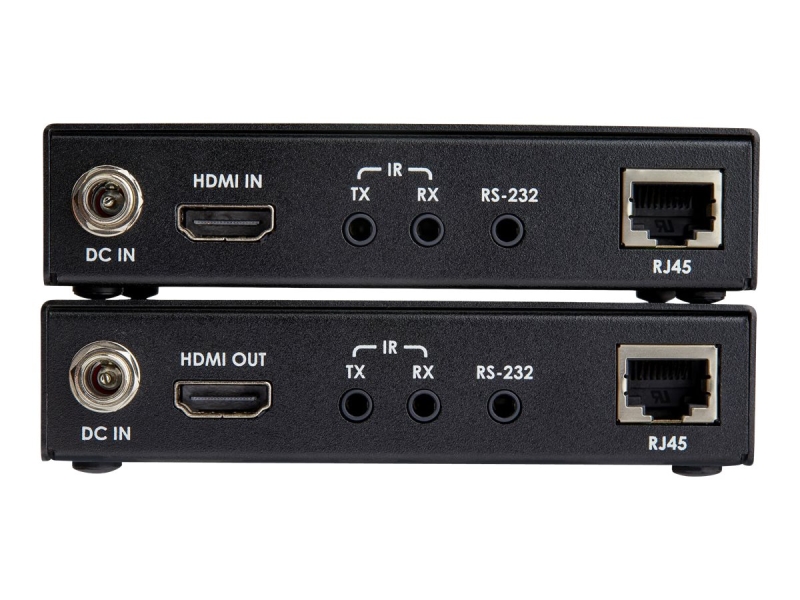

Connector(s)
Connector A
1 - RJ-45
1 - HDMI (19 pin)
1 - 3.5 mm Mini-Jack (3 Position)
1 - 3.5 mm Mini-Jack (3 Position)
1 - 3.5 mm Mini-Jack (3 Position)
Connector B
1 - HDMI (19 pin)
1 - RJ-45
1 - 3.5 mm Mini-Jack (3 Position)
1 - 3.5 mm Mini-Jack (3 Position)
1 - 3.5 mm Mini-Jack (3 Position)
Environmental
Operating Temperature
-5°C to 40°C (23°F to 104°F)
Storage Temperature
-15°C to 55°C (5°F to 131°F)
Humidity
0% - 95 % RH (No Condensation)
Hardware
AV Input
HDMI
AV Output
HDMI
Cabling
Cat 6 UTP
Audio
Yes
Chipset ID
Norelsys NS 5730, NS5731
Indicators
LED Indicators
2 - Power LED
2 - Link LED
Packaging Information
Package Height
3.7 in [9.5 cm]
Package Length
9.6 in [24.5 cm]
Shipping (Package) Weight
3.2 lb [1.5 kg]
Package Width
7.9 in [20.0 cm]
Package Quantity
1
Performance
Max Distance
100 m / 330 ft
Supported Resolutions
3840x2160 (4K) 60Hz
2560x1600 60Hz
1920x1200 60Hz
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz

**Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Wide Screen Supported
Yes
Audio Specifications
Physical Characteristics
Color
Black
Product Height
1.0 in [2.6 cm]
Product Length
4.3 in [11.0 cm]
Weight of Product
19.0 oz [537.0 g]
Product Width
3.0 in [7.5 cm]
Material
Steel
Power
Power Source
2 AC Adapters Included
Input Voltage
110V-240V AC
Output Voltage
5V DC
Output Current
3 A
Center Tip Polarity
Positive
Plug Type
M
What's in the Box
Included in Package
1 - HDMI Transmitter
1 - HDMI Receiver
1 - CAT6 Cable
1 - IR Kit
2 - Universal Power Adapters (NA/JP, EU, UK, ANZ)
2 - 3.5 mm to DB-9 RS-232 Adapters
4 - Mounting Brackets
1 - Quick-Start Guide

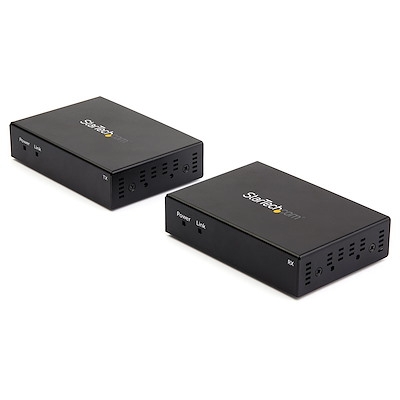

STARTECH HDMI OVER CAT6 EXTENDER 4K 60HZ, 100 M
