DESCRIPTION

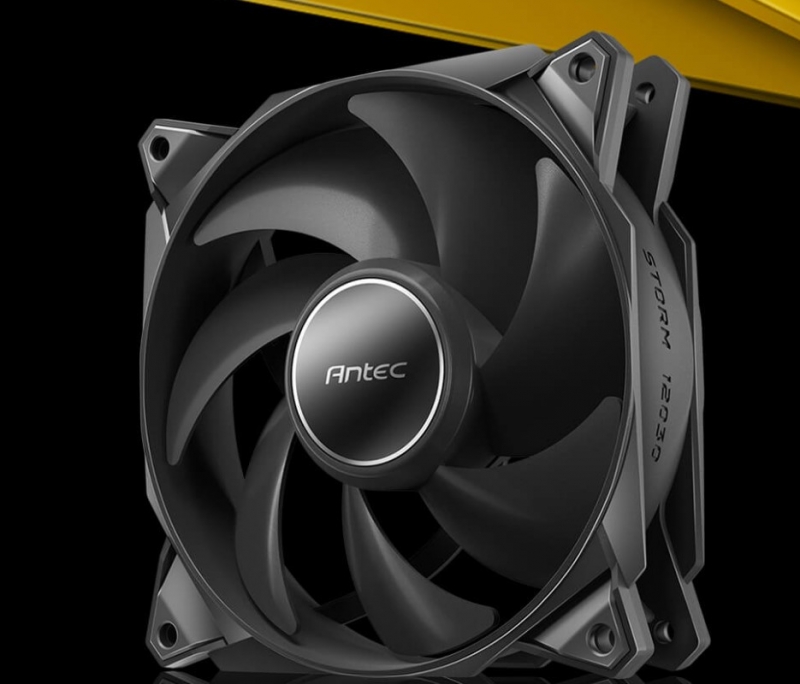

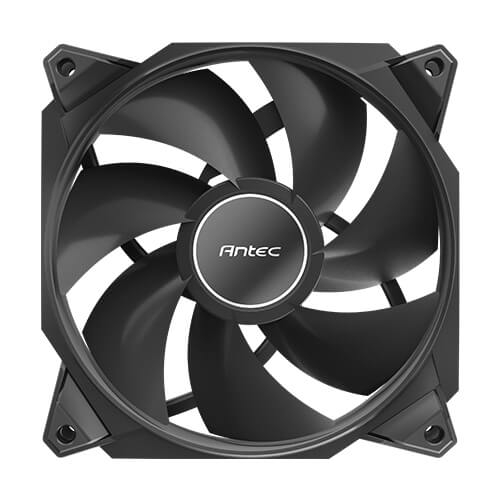

The STORM T3 120 PWM Case Fan

Storm T3 with a thickness of 30mm and thickened fan blades

Air-Concentrating Design
The well-designed case frame and curves make the airflow stronger, reduce turbulent flow and fan noise and enhance the efficiency.

Daisy-Chain Design
To avoid signal interference, fans are daisy-chained with 3-pin connectors.But the fans fully support the PWM function.

Fluid Dynamic Bearing Fan
The FDB bearing fan can extend durability and lifespan..

Vibration-Absorbing & Anti-Noise Pads
The 8 x 6mm rubber pads can efficiently reduce vibration and noise.


Model Name Storm T3 120 (AF12012GH2PB)
Fan Type PWM Fan
Dimensions 120 x 120 x 30 mm
Bearing Type FDB Bearing
Fan Speed 600~2200RPM ± 10%
Airflow min 18.17~max 80.47 CFM
Air Pressure min 0.25~max 2.95 mmH₂O
Fan Noise Level 36.99 dB(A)
Lifespan 70,000 hrs 25°C
Connector 4-pin PWM
Rated Voltage DC 12 V
Operation Voltage DC 6.0-13.8 V
Rated Current ≤ 0.21A
