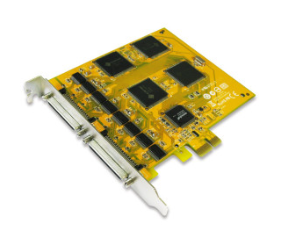

Sunix 16-Port Rs-232 High Speed Pci Express Serial Board Ser5416H

SKU
287275
Brand
Sunix
MPN
SER5416H
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $435.00 Regular Price $500.00
Buy Now And Earn 435 Reward Points!
Add to Compare
  • Expands 16 independent RS-232 serial ports with communication speeds up to 921.6Kbps.
  • High speed SUN1999 16C950 compatible UART controller on-board.
  • Designed to meet PCI Express Base Specification Revision 1.1.
  • Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Built-in ± 15KV ESD protection for all serial signals meets IEC1000-4-2 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS.

Serial Communication

Interface RS-232 Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Controller SUNIX SUN1999
(16C950 UART Compatible)		 Baud rate 50bps ~921.6Kbps
BUS PCI Express one lane (x1) Stop bit 1, 1.5, 2
No. of Port 16-port Parity even, odd, none, mark, space
IRQ & IO Assigned by System Flow Control None, Xon/Xoff, RTS/CTS
FIFO 128byte Hardware PCB Connector Mini SCSI 68 Female
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge

Driver Support

Windows Client XP/Vista/7/8/8.1 (X86/X64)
Windows Server 2000/2003/2008/2012/2012 R2 (X86/X64)
Windows Embedded XP Embedded/POSReady 2009/POSReady 7/Embedded System 2009
Linux Linux 2.4.x/2.6.x/3.x
DOS DOS
FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4
QNX QNX 6.3.2/6.4.0
* IBM OS/2 WARP 3/WARP 4
* SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems Solaris 10
Note : “ * “ Supported by special inquiry.

Regulatory Approvals

Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3,
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software Microsoft WHQL Windows
◆ Windows Client: XP/Vista/7/8/8.1 (X86/X64)
◆ Windows Server: 2000/2003/2008/2012/2012 R2 (X86/X64)

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 120 x 110 mm
Bracket Standard 121 mm
Bracket Space 1
