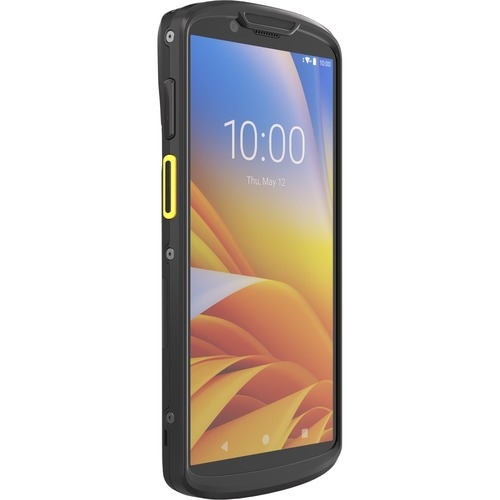

Zebra TC53 LAN 6.0IN DISPLAY WIFI 6E 8GB RAM/128GB ROM SE55 IMAGER 3.5MM HEADPHONE JACK 8MP FFC 16MP RFC WARM SWAP 4400 MAH STD BATT GMS ROW ONLY TC5301-0T1K6B1000-A6
SKU
401355
Brand
MPN
TC5301-0T1K6B1000-A6
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$3,174.00
Buy Now And Earn 3174 Reward Points!
TC53 LAN 6.0IN DISPLAY WIFI 6E 8GB RAM/128GB ROM SE55 IMAGER 3.5MM HEADPHONE JACK 8MP FFC 16MP RFC WARM SWAP 4400 MAH STD BATT GMS ROW ONLY
Powering a new generation of data collectionIntroducing the TC53 and TC58, the first members of a new generation of Zebra mobile computers designed to do more. What makes these devices so different? New hardware redefines mobile computing performance. New solutions and sensor technologies redefine the world of possibilities-from mobile payment to parcel dimensioning. All the latest wireless technologies give workers faster and more reliable access to information they need to get the job done-including 5G, Wi-Fi™ 6E and CBRS (US only). A class-leading 6-inch screen lets workers see more, do more-and scroll less. Zebra-only Mobility DNA™ tools deliver built-in advantage, maximizing user productivity while minimizing IT complexities throughout the entire device lifecycle. New manufacturing technologies make the TC53 and TC58 thinner-yet even more rugged. The result? A new generation of data collection. A new level of operational efficiency. And a new level of workforce productivity. The TC53/TC58-driving new possibilities into the world of mobility.
Blazing Speed
Get virtually instant response times in the most demanding applications with class-leading processing power, memory and storage-the next-generation Qualcomm® 6490 octa-core processor, up to 8 GB of RAM and 128 GB of Flash, plus a 2 TB MicroSD card slot.
All the Latest Wireless Connections
Give your workers the fastest speeds with Wi-Fi 6E and 5G. And support for CBRS private LTE networks enables cost-effective wireless connectivity in the largest indoor and outdoor facilities.
Industry-Leading 6-Inch Advanced Display
Get the largest, highest resolution and brightest display in this product class. Screens are easy to read indoors and outside. Edge-to-edge technology means more information and less scrolling. It works when wet. And workers can use a stylus or finger, with or without a glove-no need to change modes.
Thinner and Tougher
An ergonomic design and advanced manufacturing and materials technology make the TC53 and TC58 thinner, yet rugged.
Unmatched Battery Technology
Get full shift power and the intelligence to better manage batteries with Zebra's PowerPrecision+ standard 4400 mAh and extended 6600 mAh batteries
Hear Every Word on Every Call
With three integrated microphones, two speakers and support for wireless and wired headsets, collaboration is easy.
Capture Ultra-High Resolution Photos and Video Intelligence
The 16 MP integrated camera offers the highest resolution in its class. And with optional Optical Image Stabilization (OIS), it's easy to capture sharp, detailed photographs to document proof of condition, proof of delivery and more.
Choose Standard or Advanced Range Scanning
Choose the SE4720 1D/2D scan engine for standard scanning ranges or the SE55 1D/2D Advanced Range scan engine with Intellifocus™ technology to scan items in hand or over 40 ft./12 m away (distance dependent on symbology type and size). Both options deliver split-second first time capture of virtually every barcode, regardless of condition.
Guides & Documents
Power Description
Power Source | Battery |
Interfaces/Ports
USB | Yes |
USB Type-C | Yes |
Software
Operating System | Android 11 |
Upgradable Operating System | Android 16 |
Touchscreen Information
Touchscreen | Yes |
Multi-touch Screen | Yes |
Battery Information
Battery Chemistry | Lithium Ion (Li-Ion) |
Battery Capacity | 4400 mAh |
Battery Included | Yes |
Memory
Flash Memory | 128 GB |
Standard Memory | 8 GB |
Memory Card Supported | microSD |
Camera
Rear Camera | Yes |
Rear Camera Resolution | 16 Megapixel |
Front Camera | Yes |
Front Camera Resolution | 8 Megapixel |
Display & Graphics
Screen Resolution | 2160 x 1080 |
Screen Size | 6" |
Screen Mode | Full HD |
Display Screen Type | LCD |
Technical Information
Brightness | 600 cd/m² |
Connectivity Technology | Wireless |
Features | Push-to-talk |
Gorilla Glass 5 | |
Drop Resistant | |
Sensor Type | Light Sensor |
Magnetometer | |
Gyroscope | |
Motion Sensor | |
Pressure Sensor | |
Proximity | |
Scanning Distance | 12 m |
Scanner Range | Advanced Range |
Drop Specification | Multiple 6 ft./1.8 m drops to concrete over operating temp (-20°C to 50°C / -4°F to 122°F) with protective boot per MIL STD 810H; Multiple 5 ft./1.5 m drops to tile over concrete (-10°C to 50°C / 14°F to 122°F) per MIL STD 810 H |
Image Sensor Type | Imager |
Number of SIM Card Supported | 1 |
SIM Size Supported | Nano |
Google Mobile Services (GMS) | Yes |
Scan Engine Model | SE55 |
Scanning Capability | 1D |
2D |
Processor & Chipset
Processor Speed | 2.70 GHz |
Processor Model | 6490 |
Processor Core | Octa-core (8 Core) |
Processor Manufacturer | Qualcomm |
Physical Characteristics
Weight (Approximate) | 293 g |
Height | 164.6 mm |
Width | 77.2 mm |
Depth | 16.8 mm |
Rugged | Yes |
General Information
Product Type | Handheld Terminal |
Manufacturer Part Number | TC5301-0T1K6B1000-A6 |
Manufacturer Website Address | http://www.zebra.com/ap/en.html |
Manufacturer | Zebra Technologies Corporation |
Product Model | TC53 |
Product Name | TC53 Mobile Computer |
Brand Name | Zebra |
Network & Communication
Bluetooth | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
Bluetooth Standard | Bluetooth 5.2 |
GPS | Yes |
Cellular Data Connectivity Technology | 5G |
LTE | |
3G | |
4G | |
Near Field Communication (NFC) | Yes |
Miscellaneous
Application/Usage | Logistics |
Warehouse | |
Transportation | |
Retail | |
Field Sales/Service | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
TAA Compliant | Yes |
Ingress Protection (IP) Rating | IP65 |
IP68 |
