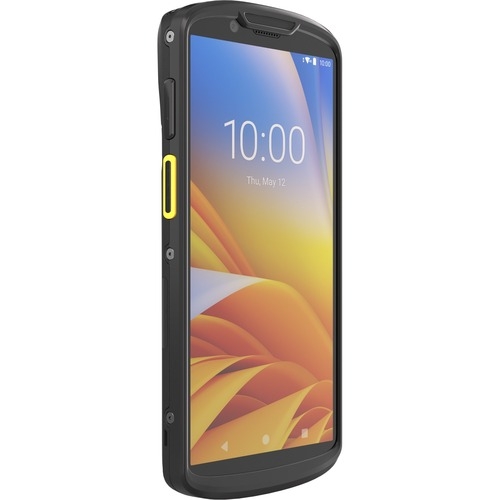

Zebra TC53 PREMIUM LAN 6.0IN DISPLAY WIFI 6E 8GB RAM/128GB ROM SE55 IMAGER 3.5MM HEADPHONE JACK TIME OF FLIGHT 8MP FFC 16MP RFC W OIS TRUE HOT SWAP 4400 MAH STD BATT GMS ROW ONLY TC5301-0T1K6E200A-A6

SKU
401356
Brand
MPN
TC5301-0T1K6E200A-A6
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$3,691.00
Buy Now And Earn 3691 Reward Points!

TC53 PREMIUM LAN 6.0IN DISPLAY WIFI 6E 8GB RAM/128GB ROM SE55 IMAGER 3.5MM HEADPHONE JACK TIME OF FLIGHT 8MP FFC 16MP RFC W OIS TRUE HOT SWAP 4400 MAH STD BATT GMS ROW ONLY

Powering a new generation of data collection

Introducing the TC53 and TC58, the first members of a new generation of Zebra mobile computers designed to do more. What makes these devices so different? New hardware redefines mobile computing performance. New solutions and sensor technologies redefine the world of possibilities-from mobile payment to parcel dimensioning. All the latest wireless technologies give workers faster and more reliable access to information they need to get the job done-including 5G, Wi-Fi™ 6E and CBRS (US only). A class-leading 6-inch screen lets workers see more, do more-and scroll less. Zebra-only Mobility DNA™ tools deliver built-in advantage, maximizing user productivity while minimizing IT complexities throughout the entire device lifecycle. New manufacturing technologies make the TC53 and TC58 thinner-yet even more rugged. The result? A new generation of data collection. A new level of operational efficiency. And a new level of workforce productivity. The TC53/TC58-driving new possibilities into the world of mobility.

Blazing Speed

Get virtually instant response times in the most demanding applications with class-leading processing power, memory and storage-the next-generation Qualcomm® 6490 octa-core processor, up to 8 GB of RAM and 128 GB of Flash, plus a 2 TB MicroSD card slot.

All the Latest Wireless Connections

Give your workers the fastest speeds with Wi-Fi 6E and 5G. And support for CBRS private LTE networks enables cost-effective wireless connectivity in the largest indoor and outdoor facilities.

Industry-Leading 6-Inch Advanced Display

Get the largest, highest resolution and brightest display in this product class. Screens are easy to read indoors and outside. Edge-to-edge technology means more information and less scrolling. It works when wet. And workers can use a stylus or finger, with or without a glove-no need to change modes.

Thinner and Tougher

An ergonomic design and advanced manufacturing and materials technology make the TC53 and TC58 thinner, yet rugged.

Unmatched Battery Technology

Get full shift power and the intelligence to better manage batteries with Zebra's PowerPrecision+ standard 4400 mAh and extended 6600 mAh batteries

Hear Every Word on Every Call

With three integrated microphones, two speakers and support for wireless and wired headsets, collaboration is easy.

Capture Ultra-High Resolution Photos and Video Intelligence

The 16 MP integrated camera offers the highest resolution in its class. And with optional Optical Image Stabilization (OIS), it's easy to capture sharp, detailed photographs to document proof of condition, proof of delivery and more.

Choose Standard or Advanced Range Scanning

Choose the SE4720 1D/2D scan engine for standard scanning ranges or the SE55 1D/2D Advanced Range scan engine with Intellifocus™ technology to scan items in hand or over 40 ft./12 m away (distance dependent on symbology type and size). Both options deliver split-second first time capture of virtually every barcode, regardless of condition.
Guides & Documents
Power Description
Power SourceBattery
Interfaces/Ports
USBYes
USB Type-CYes
Software
Operating SystemAndroid 11
Upgradable Operating SystemAndroid 16
Touchscreen Information
TouchscreenYes
Multi-touch ScreenYes
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity4400 mAh
Battery IncludedYes
Display & Graphics
Screen Resolution2160 x 1080
Screen Size6"
Display Screen TypeLCD
Memory
Flash Memory128 GB
Standard Memory8 GB
Memory Card SupportedmicroSD
Camera
Rear CameraYes
Rear Camera Resolution16 Megapixel
Front CameraYes
Front Camera Resolution8 Megapixel
Technical Information
Brightness600 cd/m²
Connectivity TechnologyWireless
FeaturesGorilla Glass
Push-to-talk
Drop Resistant
Sensor TypeProximity
Pressure Sensor
Magnetometer
Light Sensor
Gyroscope
Motion Sensor
Scanning Distance12 m
Scanner RangeAdvanced Range
Drop SpecificationMultiple 6 ft./1.8 m drops to concrete over operating temp (-20°C to 50°C / -4°F to 122°F) with protective boot per MIL STD 810H; Multiple 5 ft./1.5 m drops to tile over concrete (-10°C to 50°C / 14°F to 122°F) per MIL STD 810 H
Image Sensor TypeImager
Google Mobile Services (GMS)Yes
Scan Engine ModelSE55
Scanning Capability1D
2D
Processor & Chipset
Processor Speed2.70 GHz
Processor Model6490
Processor CoreOcta-core (8 Core)
Processor ManufacturerQualcomm
Network & Communication
BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth StandardBluetooth 5.2
Near Field Communication (NFC)Yes
Physical Characteristics
Weight (Approximate)293 g
Height164.6 mm
Width77.2 mm
Depth16.8 mm
RuggedYes
General Information
Product TypeHandheld Terminal
Manufacturer Part NumberTC5301-0T1K6E200A-A6
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelTC53
Product NameTC53 Mobile Computer
Brand NameZebra
Miscellaneous
Application/UsageTransportation
Retail
Logistics
Field Sales/Service
Warehouse
Package Contents
  • TC53 Mobile Computer
  • Battery
Environmentally FriendlyYes
Environmental CertificationRoHS
TAA CompliantYes
Ingress Protection (IP) RatingIP68
IP65
