DESCRIPTION

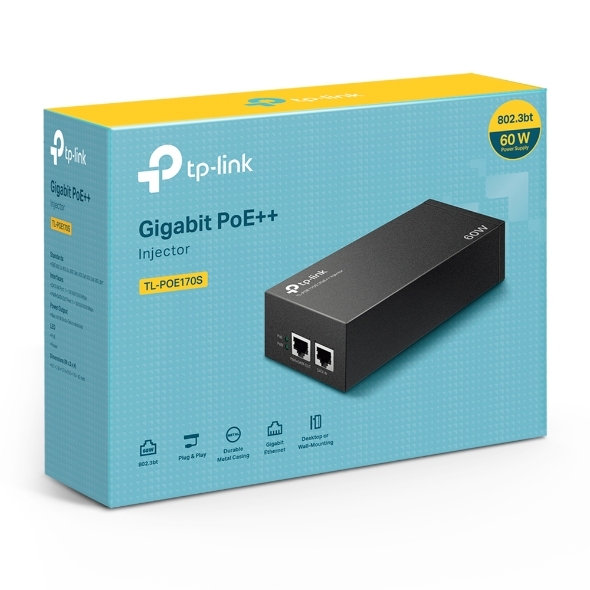

TP-Link TL-POE170S PoE++ Injector

• 2 Gigabit ports ensure faster transmission
• Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
• Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
• Automatically determines and supplies the exact power to meet the device's need
• Wall-mounting and desktop design accommodates most installation scenarios
• Plug & Play installation requires no configuration
• Integrated power supply
• Durable metal casing

NETWORK
Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt

HARDWARE FEATURES
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports 1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play

Dimensions ( W x D x H ) 6.1*2.8*1.7 in (155*70*42 mm)
