EAP110-Outdoor
Centralized Management
Manage hundreds of access points at once with the multi-function Auranet Controller software, ideal for small and medium-sized business networks.
Learn moreAuranet Controller Software

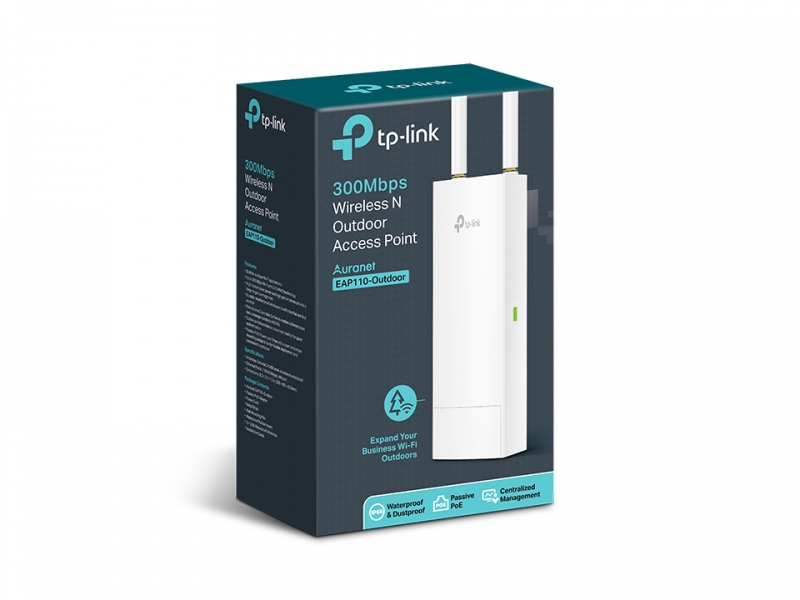

Tp-link Eap110 Outdoor 300mbps Wireless N Outdoor Access Point 1xrj45 Passive Poe 2*5dbi
SKU
235905
Brand
MPN
EAP110-Outdoor
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $64.00 Regular Price $74.00
Buy Now And Earn 64 Reward Points!
QUICK OVERVIEW
External Omni waterproof Antenna Pole/ Wall Mounting EAP110-Outdoor
300Mbps Wireless N Outdoor Access PointEAP110-Outdoor
- Built for outdoor Wi-Fi applications
- Up to 300Mbps Wi-Fi with 2x2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather
- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
- Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
- Captive portal provides a convenient method for guest authentication
- Wireless N Speed up to 300Mbps
- Simple mounting design makes easy to install on any wall or pole
- Passive PoE supported for convenient and affordable installation
- Weatherproof enclosure, 15KV ESD and 6KV lightning protection
- Free Controller Software for easy centralized management of hundreds of EAPs
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Rate limit on per SSID to restrict the bandwidth of each client
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
- Access Control restricts or only allows the client to access the specified network segment
- Reboot Schedule enables all the APs to reboot automatically at a specified time
- WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
- Multi-SSID divides multiple wireless network for different users
- Multiple operating modes including managed AP and standalone AP satisfy different application conditions
Swimming
Pool
Outdoor
Events
Gardens
6KV Lightning Protection and
15KV ESD Protection
No Ingress of Dust
Water Proof Enclosure
TP-Link EAP110 Outdoor 300Mbps Wireless N Outdoor Access Point 1xRJ45 Passive PoE 2*5dBi External Omni waterproof Antenna Pole/Wall Mounting
Built for outdoor Wi-Fi applications
Up to 300Mbps Wi-Fi with 2x2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Durable, weatherproof enclosure to withstand fair and foul weather
Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
Free Auranet Controller Software lets administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication
HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button Reset
Power Supply 24VDC / 0.6A Passive PoE Supply
Power Consumption 6.3 W
Dimensions ( W x D x H ) 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
Antenna Type 2*5dBi External Omni waterproof
Mounting Pole / Wall Mounting (Kits included)
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n/g/b
Frequency 2.4GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Transmit Power CE：
<20dBm
FCC:
<27dBm
Wireless Functions Multiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
