MEDIA CONVERTER & MODULE
Standards and Protocols	IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function	Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 0.5km using 50/125um fiber Extends fiber distance up to 0.22km using 62.5/125um fiber
Ports	1 1000M SC/UPC port 1 1000M RJ45 port (Auto MDI/MDIX)
Wave Length	850nm
Network Media 1000BASE-FX	Multi-mode Fiber
Network Media 1000BASE-T	UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators	PWR, LINK, RX
Dimensions (W*D*H)	3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply	External Power Adapter
Max Power Consumption	5.5W
Safety & Emission	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

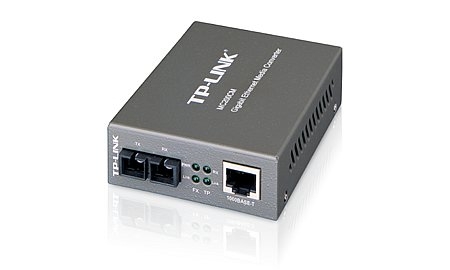

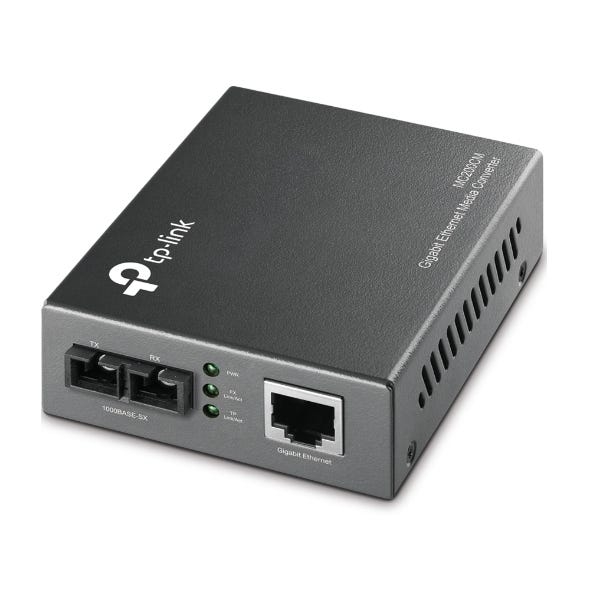

TP-Link | MC200CM: Media Converter RJ45-SC GIGABIT MultimodeThe MC200CM is a media converter designed to convert 1000BASE-SX fibre to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fibre cable utilising the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fibre optic distances utilising multi-mode fibre up to 0.55 kilometres.FEATURESComplies with IEEE 802.3ab and IEEE 802.3z Provides switch configuration of Force /Auto transfer mode for FX portExtends fibre distance up to 0.55kmWorks at 1000Mbps in Full-Duplex mode for both TX port and FX portSupports auto MDI/MDIX for TX portProvides switch configuration of Force /Auto transfer mode for FX port Easy-to-view LED indicators provide status to monitor network activity easily External power supplySPECIFICATIONSStandards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3xBasic Function: Full Duplex Flow Control (IEEE 802.3x); Extends fibre distance up to 0.5km using 50/125um fibre; Extends fibre distance up to 0.22km using 62.5/125um fibrePorts: 1 1000M SC port; 1 1000M RJ45 port (Auto MDI/MDIX)Wave Length: 850nmNetwork Media 1000BASE-FX: Multi-Mode FibreNetwork Media 1000BASE-T: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)LED Indicators: PWR, LINK, RXDimensions: 94.5x73.0x27.0 mm Power Supply: External Power AdapterSafety & Emission: FCC, CE, RoHSOperating Temperature: 0℃~40℃Storage Temperature: -40℃~70℃Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensingWARRANTY3 Year TP-LINK Warranty.4Cabling is an authorised distributor of TP-LINK products. We guarantee that this product is authorised Australian stock and comes with a manufacturer warranty in addition to 4Cabling's warranty.WHY 4CABLING? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking productsISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplierSecure online shopping 24/7A loyal customer base of 100k+ who trust us for their data & electrical needsOver 3000 quality products in stock ready to goAll products are approved as per local Australian standardsWarranty & peace of mind return policyLightning fast delivery nationwideExpert adviceProudly 100% Australian owned & operated NEED HELP? Email sales@4cabling.com.au or phone 02 9565 4077 to talk with one of our expert advisers.
