QNAP 8-BAY NAS (NO DISK) AMD QC 2.2GHz, 4GB, 2.5GbE (2), PCIe, 2U, 3YR WTY TS-873AEU-4G
SKU
388747
Brand
MPN
TS-873AEU-4G
Warranty
Standard Manufacturer's Warranty
$2,846.00
Buy Now And Earn 2846 Reward Points!

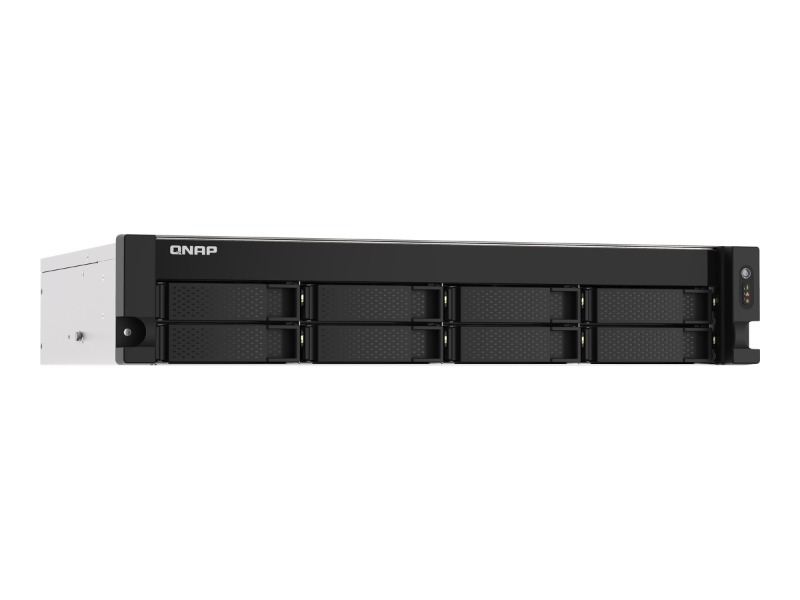

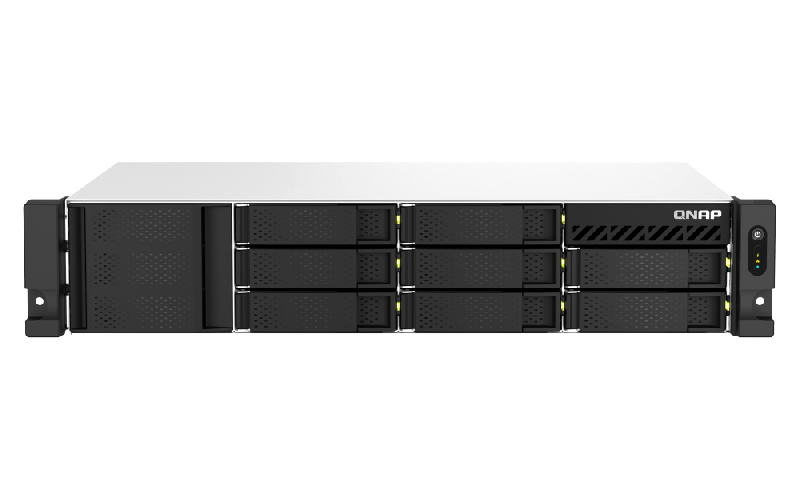

QNAP TS-873AEU-4G - NAS server - 8 bays - rack-mountable
TS-873AeU-4G
- Download Datasheet
- Download Datasheet
- Download Datasheet
CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
CPU Architecture | 64-bit x86 |
Floating Point Unit | |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
Maximum Memory | 64 GB (2 x 32 GB) |
Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | |
M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1) |
SSD Cache Acceleration Support | |
GPU pass-through | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
10 Gigabit Ethernet Port | Optional via a network adapter |
Wake on LAN (WOL) |
Only the 2.5GbE port
|
Jumbo Frame | |
PCIe Slot | 1 x PCIe Gen3 x8 |
USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
HDMI Output | Optional via a PCIe graphics card |
Form Factor | 2U Rackmount |
LED Indicators | HDD 1-8, Status, LAN, USB, Power |
Buttons | Power, Reset |
Dimensions (HxWxD) | 89 × 482 × 297.4 mm |
Weight (Net) | 7.61 kg |
Weight (Gross) | 10.2 kg |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 250W PSU, 100 - 240V |
Power Consumption: HDD Sleep Mode | 26.76 W |
Power Consumption: Operating Mode, Typical | 52.49 W
Tested fully populated with WD10EFRX hard drives.
|
Fan | 3 x 60mm, 12VDC |
System Warning | Buzzer |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
QNAP 8-BAY NAS (NO DISK) AMD QC 2.2GHz, 4GB, 2.5GbE (2), PCIe, 2U, 3YR WTY
