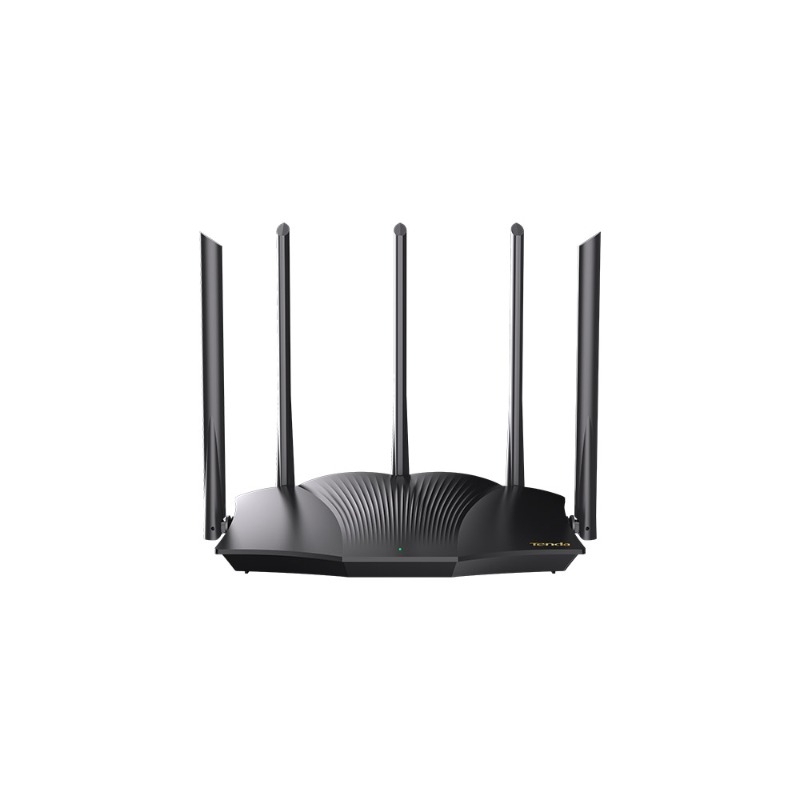

Tenda (TX12 Pro) AX3000 Dual Band Gigabit Wi-Fi 6 Router

SKU
396528
Brand
MPN
TX12 Pro
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$171.00
Buy Now And Earn 171 Reward Points!

TX12 Pro is a Gigabit Wi-Fi 6 router designed for users who are looking for a performance experience. It supports Wi-Fi+ networking, which can easily solve the problem of Wi-Fi coverage for super-large houses. Both its dual-band support Wi-Fi 6 (802.11ax) technology, with a concurrent rate of up to 2976Mbps (2.4GHz: 574Mbps, 5GHz: 2402Mbps). Besides, TX12 Pro is equipped with 4 high-speed Power FEMS, Wi-Fi has a stronger ability to penetrate walls and a longer transmission distance. And It's equipped with Broadcom 6756 main chip, quad-core 1.7GHz, powerful computing power, and stable operation. With the OFDMA+MU-MIMO technology, more devices can access the Internet at the same time, the transmission efficiency is significantly improved, and the delay is greatly reduced.

Hardware
Standard&Protocol
IEEE802.3, IEEE802.3u,IEEE802.3ab
Interfaces
1*10/100/1000Mbps WAN port
3*10/100/1000Mbps LAN ports
Antenna
5*6dBi external antennas
Button
1* WPS,1*Reset button
Power
Input:AC 100-240V~50/60Hz 0.6A
Output:DC 12V⎓1.5A
Dimension
267*166*222 mm
LED Indicator
SYS*1
Wireless
Wireless Standard
IEEE 802.11ac/a/n/ax 5GHz
IEEE 802.11b/g/n/ax 2.4GHz
Data Rate
5GHz: Up to 2402Mbps
2.4GHz: Up to 574Mbps
Frequency
Simultaneous dual band 2.4 & 5GHz
Transmission Power
CE:
<20dBm(2.4G)
<23dBm(5G)
Basic Features
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO
Wireless Security
WPA-PSK,WPA2-PSK, WPA/WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
Software
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Unify,Maxis,Maxis-special,Celcom,Digi
Operating Mode
Wireless Router Mode
Universal Repeater Mode(Client+AP,WISP)
DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwarding
DMZ Host
UPnP
Security
Client Filter
Parental Control(support black list and white list)
Remote Web Management
Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP attack
Forbid WAN PING from internet
DDNS
DynDns, NO-IP, Oray.com, 3322.org, 88ip
VPN
PPTP Client
PPTP Server
L2TP Client
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
Special Features
WiFi+(Mesh System)
Smart diagnosis
VLAN
TR069
Smart Traffic Prioritisation
Smart WiFi Schedule
Smart LED on/off
Others
IPTV
PPPoE Username/password Clone
Tenda App
Bandwidth Control
Guest Network  Remote Web Management
MAC Clone
Backup & Restore configurations
Support automatic access detection
Firmware upgrade online
Firmware upgradeable via browser
Others
Temperature
Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃
Humidity
Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing
Default Settings
Default Access: tendawifi.com
Certification
CE, RoHS, FCC
EIRP Power (Max)
2.400-2.4835 GHz:19.83dBm(EIRP)
5.150-5.250 GHz:22.98dBm(EIRP)
Package Contents
Wireles Router*1
Power Adapter *1
Install Guide*1
Ethernet Cable*1
