CRESTRON FLEX C160 VIDEO CONFERENCE SYSTEM KIT,10.1 TOUCH SCREEN,INTEL UC ENGINE - MTR
SKU
301162
Brand
Warranty
1 Year Manufacturer's return to base
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
CRESTRON FLEX C160-T VC SYSTEM INTEGRATOR KIT, 10.1" TOUCH SCREEN, DUAL, TEAMS ROOMS
BUNDLED COMPONENTS INFO
| QTY | SKU | DESCRIPTION |
|---|---|---|
| 1 | TSW-1060-B-S | CRESTRON 10.1" TOUCH SCREEN, BLACK |
| 1 | TSW-1060-TTK-B-S | CRESTRON TABLETOP KIT FOR TOUCH SCREEN TSW-1060-B-S, BLACK |
| 1 | PWE-4803RU | CRESTRON PoE INJECTOR FOR TOUCH SCREEN TSW-1060-B-S |
| 2 | CBL-CAT5E-7 | CRESTRON CAT5E ETHERNET LAN CABLE FOR UC ENGINE, RJ45 TO RJ45, BLACK, 2.1 M |
| 1 | UC-BRKT-100-ASSY | CRESTRON UC ENGINE TEAMDD ASSYW/ UC-ENGINE,HD-CONV-USB-200,UC-CONN-HD,CBL-MDP-HD-0.5,BRKT |
| 1 | DM-CBL-ULTRA-PC-20 | CRESTRON CAT6A ETHERNET LAN CABLE FOR TOUCH SCREEN, RJ45 TO RJ45, BLUE, 15 M |
| 1 | CBL-HD-THIN-HS-6 | CRESTRON HDMI TYPE A MALE TO MALE THIN CABLE FOR CONNECTING DISPLAY, 1.8 M |
| 1 | CBL-USBC-HD-9 | CRESTRON USB-C MALE TO HDMI TYPE A MALE CONVERTER CABLE, 2.7 M |
| 1 | CBL-HD-20 | CRESTRON HDMI TYPE A MALE TO MALE CABLE FOR CONTENT SOURCE, 6.1 M |
| 1 | CRES-CORD-C13 | CRESTRON AU 3 PIN TO C13 KETTLE POWER CORD, FOR PWE-4803RU & SOUNDBAR, 2M |
| 1 | HPL240/CLB | CRESTRON AU 3 PIN TO C5 CLOVER POWER CORD, FOR UC ENGINE, 2 M |

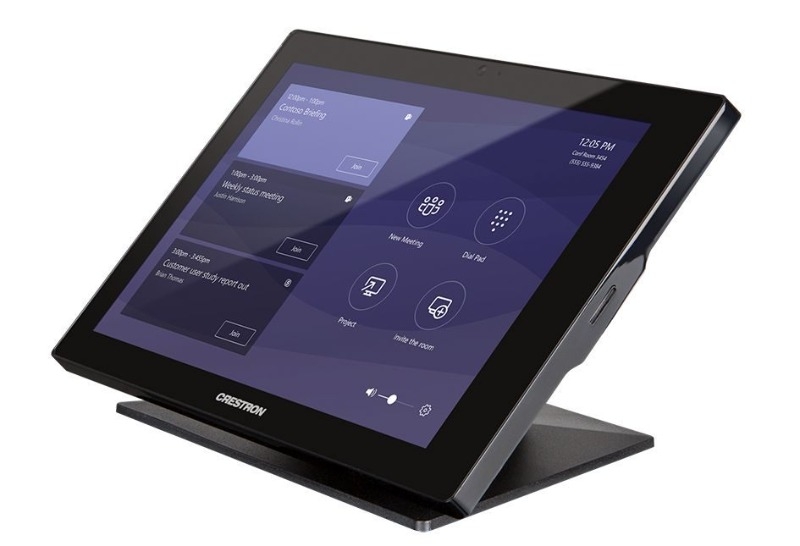

| Touch Screen | 10.1 in. (257 mm) diagonal capacitive multi‑touch TFT active matrix color LCD, 1280 x 800 pixels, displays Microsoft Teams UI plus optional Crestron Smart Graphics® room control UI1 |
| Ethernet | 10/100 Mbps; enterprise grade security and management including IEEE 802.1X, Active Directory® authentication, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), digest access authentication, password login, HTTPS secure provisioning, Crestron XiO Cloud client, IEEE 802.3at compliant |
| Power over Ethernet | IEEE 802.3at compliant PoE or PoE+ PD (Powered Device);‑ Requests 15 W from an 802.3at Type 2 PSE with LLDP advanced power management;‑ Requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP;‑ Requests 15.4 W (PoE Class 0) from an 802.3af (or 802.3at Type 1) PSE |
| PoE Injector | A PoE injector is included to power the touch screen if network PoE is not available |
| Construction (Tabletop Touch Screen) | Plastic tabletop housing, smooth black finish, edge‑to‑edge glass with black surround |
| Dimensions (Tabletop Touch Screen) | Height: 5.42 in. (138 mm)Width: 10.23 in. (260 mm)Depth: 5.69 in. (145 mm) |
| Weight (Tabletop Touch Screen) | 41.2 oz (1166 g) |
| UC Engine Assembly Mini PC | Intel NUC Kit NUC6i7KYK |
| Processor | 6th generation Intel Core® i7-6770HQ processor with Intel Iris® Pro Graphics 580, 8 GB RAM, 256 GB SSD, Intel I219-LM 10/100/1000 Mbps Ethernet, Windows® 10 IOT Edition OS |
| UC Client | Microsoft Teams or Skype for Business Software |
| Management Client | Crestron XiO Cloud Service |
| USB | USB 3.0 |
| Content Ingest | HDMI input via HDMI to USB 3.0 converter (model HD-CONV-USB-200, included) |
| Display Output | Single or dual display support, native Mini DisplayPort™ (primary) and USB Type-C® (secondary) outputs, HDMI outputs enabled via converter cables (included) |
| Camera Input Resolution | HD 1080p @ 30 fps |
| Content Input Resolution | HD 1080p @ 60 fps |
| Display Output Resolution | HD 1080p @ 60 fps |
| Power | 19 VDC via external 100‑240 V AC, 50/60 Hz adapter (included) |
| Construction (UC Engine Assembly) | Metal mounting bracket, black, preassembled with UC Engine and USB to HDMI converter |
| Mounting | Surface wall mount behind the display device, or attach to the rear of the display device via the bolts attaching the display to a VESA® compliant display mount; the Crestron bracket includes mounting holes on both side edges, spaced 100, 200, and 300 mm vertically, to allow for attachment to either side of the display mounting plate |
| Dimensions (UC Engine Assembly) | Height: 16.00 in. (407 mm)Width: 14.00 in. (356 mm)Depth: 1.62 in. (41 mm) |
