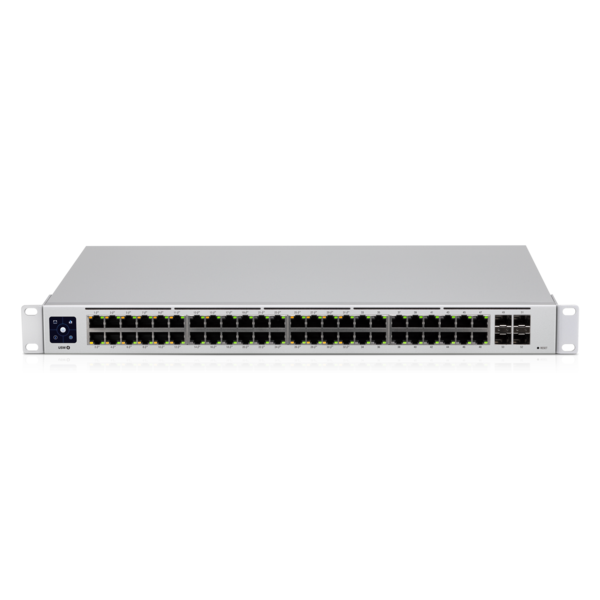

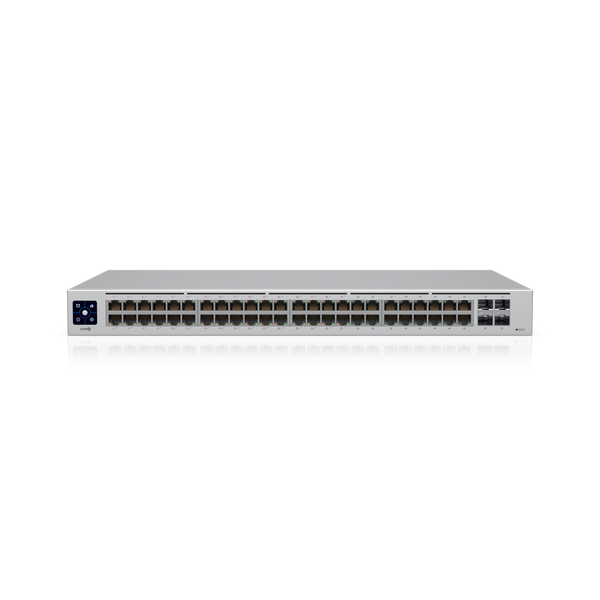

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3″ touch LCM to provide status
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features:
(48) Gigabit Ethernet Ports including (32) 802.3at PoE+
(4) 1G SFP Ports
1.3″ touch LCM
Managed by UniFi Controller
210W Power supply

Product Specifications:
Dimensions 442.4 x 285 x 43.7 mm
(17.42 x 11.22 x 1.72″)
Weight
With Rackmount Brackets 4.52 kg (9.97 lb)
4.61 kg (10.16 lb)
Interfaces
Networking

Management
(48) 10/100/1000 RJ45 Ports
(4) 1G SFP Ethernet Ports
Ethernet In-Band
Power Method 100-240VAC, 50/60 Hz, Universal Input
Power Supply AC/DC, Internal, 240W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 45W
LEDs
RJ45 Data Ports
SFP Data Ports
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
POE
PoE Interfaces
Ports 1-32
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at
32W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at Mode 50-57V
