DrayTek Multi WAN Router with a Cat 6 4G LTE SIM slot, VDSL2 35b/G.Fast, 1 x GbE WAN/LAN, and 3G/4G USB WAN port for Load Balancing and Fail-over, 5 x GbE LANs, Object-based SPI Firewall, CSM, QoS, 32 x VPNs, 16 x SSL VPNs, Vigor 2866L
The Vigor2866 LTE series are G.fast/VDSL2 35b/ADSL2 firewall routers with embedded 4G LTE connectivity, making them ideal for SMB where business continuity rely on xDSL or Ethernet Internet connectivity, or branch offices at new locations where xDSL or Ethernet connection is unavailable.
These routers have 1 x RJ-11 WAN port for VDSL2 (including profile VDSL2 35b Supervectoring)/G.fast/ADSL2+, 1 x GbE WAN/LAN switchable port, 2 x embedded SIM slots that support Cat.6 4G LTE (SIM slot 2 for Failover), and 1 x versatile USB port for an additional 4G LTE connection or other applications. These WANs provide robust Load Balancing and Failover functionality.
All models support professional features including QoS, High Availability, Route Policy, SPI Firewall, Content Filtering and much more, and can act as controllers to manage VigorAPs and VigorSwitches on the LAN, or can register to VigorACS for cloud-based remote management. The Vigor2866Lac model supports built-in 802.11ac Wave 2 wireless LAN.

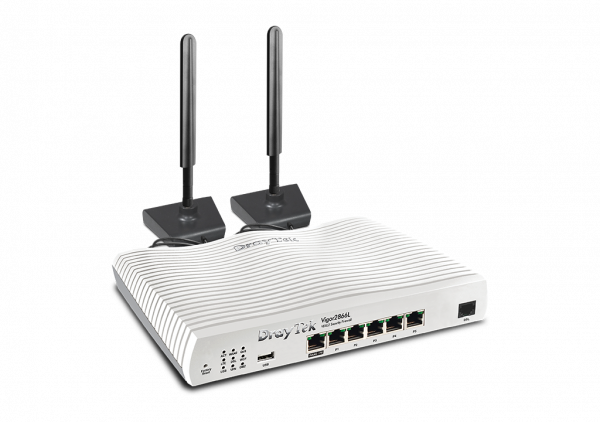

The Vigor2866 LTE series router has 2 LTE antennas. A 1 metre extension lead with a magnetic base allows the antennas to be placed in the best position for optimum 3G/4G reception.
| Fixed WAN Port | 1 x RJ-11 for VDSL2 35b, G.fast or ADSL2/2+ |
| LAN/WAN Switchable Port | 1 x 10/100/1000Base-TX RJ-45 |
| Fixed LAN Port | 5 x 10/100/1000Base-TX RJ-45 |
| SIM Slot | 2 x Standard-sized SIM slots (SIM slot 2 for Failover) |
| USB Port | 1 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| LTE Antenna | 2 x External Dipole Gain: 3 dBi |
| Performance | |
|---|---|
| NAT Throughput | 800 Mbps |
| NAT Throughput w/ Hardware Acceleration | 940 Mbps (Single Ethernet or xDSL WAN) 1.8 Gbps (Ethernet WAN + xDSL WAN) |
| IPsec VPN Performance | 300 Mbps (AES 256 bits) |
| SSL VPN Performance | 150 Mbps |
| Max. Number of NAT Sessions | 60,000 |
| Max. Concurrent VPN Tunnels | 32 |
| Max. Concurrent OpenVPN/ SSL VPN | 16 |
| xDSL | |
|---|---|
| VDSL Standards | ITU-T G.993.2 Annex A/B/M/Q T1.424 ITU-T G.993.5 (Vectoring) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b |
| G.fast Profile | 106Mhz, 212Mhz |
| ADSL Standards | ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
| Other Standards | ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission) |
| Band Plan | 998, 997 |
| 4G LTE | |
|---|---|
| LTE Category | 6 |
| Max. Data Rate | 300 Mbps downlink, 50 Mbps uplink |
| FDD Band | B1/B3/B5/B7/B8/B20/B28/B32/B38/B40 |
| TDD Band | B38/B40 |
| WCDMA (3G) Band | 1, 5, 8 |
| SMS Gateway | Learn More |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| 3G/4G/LTE WAN with USB modem | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP (IPv4) |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | |
| DNS Security (DNSSEC) | |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | |
| SMB File Sharing | (Requires external storage) |
| VPN | |
|---|---|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN) |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Redundancy | Load Balancing, Failover |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| DrayTek VPN Matcher | |
| Firewall & Content Filtering | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (* subscription required) |
| DoS Attack Defence | |
| Spoofing Defense | |
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritisation | |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
| Config File Export & Import | |
| Config File Compatibility | Vigor2862 LTE |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central VPN Management | 8 remote Vigor routers |
| Central AP Management | 20 VigorAPs |
| Central Switch Management | 10 VigorSwitches |
| Physical | |
|---|---|
| Power Supply | DC 12V @ 2.5A |
| Max. Power Consumption | 28.8 watts (Lac model) |
| Dimension | 241mm x 166mm x 46mm |
| Weight | 960g (Lac model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |   |
