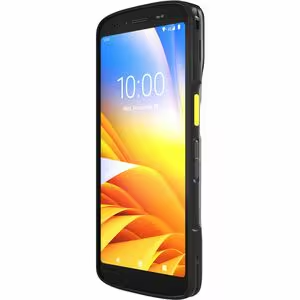

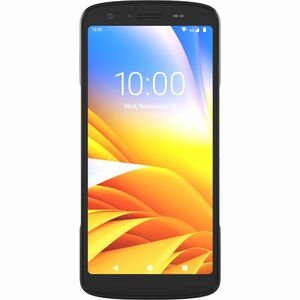

Zebra TC22 WLAN Wifi 6 SE55 6in Display 6GB/64GB 16MP RFC 5MP FFC 2-Pin Back I/O Standard Battery NFC BT USB-C GMS ROW WLMT0-T22B6CBC2-A6

SKU
416013
Brand
MPN
WLMT0-T22B6CBC2-A6
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$1,262.00
Buy Now And Earn 1262 Reward Points!

TC22 WLAN Wifi 6 SE55 6in Display 6GB/64GB 16MP RFC 5MP FFC 2-Pin Back I/O Standard Battery NFC BT USB-C GMS ROW

The ultimate cost-effective tool for small businesses - with big business features

Your small or mid-size business competes with industry giants that use the latest enterprise mobile devices to give workers a competitive edge - but the smartphones in your budget don't offer the features you need. Introducing the equalizer - the TC22/TC27 mobile computers. The third generation of the highly successful TC2x Series, the TC22/TC27 delivers the best of all worlds - smartphone styling and pricing, with big business features that boost productivity and customer service quality. This compact, powerful device offers a large 6 in. display, 5G, Wi-Fi 6E, integrated scanners, support for tap-to-pay and other contactless transactions and more. This durable device is built to outlast consumer phones, providing a better return on investment. And Zebra's portfolio of services can help you get and keep your devices up and running at peak performance. Get the boost you need to compete with any size business with the TC22/TC27 - the smartphone style workers want, the features your business needs, all at a price you can afford.

Bluetooth 5.2 delivers better audio quality while consuming less power, and adds unique features that enable effective ways to communicate and collaborate.

The best of Android - today and tomorrow

Support through Android 16 ensures you won't outgrow the operating system - you'll have access to the latest features every day your device is in service.

See more and scroll less with an advanced 6 in. FHD+ display

The larger screen delivers more display space and the bright 450 nits screen is easy to read anywhere - indoors and outside.

Capture barcodes in less time - with less effort

Compared to scanning with a mobile phone camera, Zebra's enterprise-class scanning options enable workers to capture barcodes in nearly half the time, with half the muscle work.4 Choose from the SE4710 1D/2D standard scan engine or the SE55 1D/2D Advanced Range scan engine with IntellifocusTM technology, able to scan items in hand or on the highest warehouse shelf. Both options deliver split second first time capture of virtually every barcode, regardless of condition.

Ready for the world of contactless transactions

Easily integrate the TC22/TC27 with your existing POS contactless payment solution, allowing customers to simply tap to pay. In addition, the built-in support for Apple VAS and Google SmartTap enables the TC22/TC27 to read tickets, loyalty and gift cards, boarding passes and more stored in Apple or Google wallets.

Power all your apps - simultaneously

Get superior performance on all your apps with a next generation processor that delivers twice the performance of the prior generation,1 plus class-leading memory and data storage options.

The best wireless has to offer

When it comes to wireless, the TC22/TC27 offers it all. 5G and Wi-Fi 6/6E2 deliver wired speeds, providing workers with better voice and data performance inside and outside of your facility. Support for private 5G and CBRS3 private LTE networks enables cost-effective wireless connectivity in the largest indoor and outdoor facilities.

Ergonomically designed for all day comfort

The TC22/TC27 is nearly 10% thinner than its predecessor, with a contoured surface that reduces pressure points and provides a more secure and comfortable grip for any size hand.

A durable design built to last for years

The TC22/TC27 is waterproof, dustproof, drop-proof and tumbleproof, thanks to an improved design, IP68 sealing, plus drop and tumble tests that are even more aggressive than the industry standard MIL-STD 810H an

Guides & Documents
Keyboard/Keypad
Buttons & Keys

Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power

Power Description
Power SourceBattery
Warranty
Additional Warranty Information

Subject to the terms of Zebra's hardware warranty statement, the TC22 and TC27 are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For the complete warranty statement, please visit www.zebra.com/warranty

Interfaces/Ports
USBYes
USB Type-CYes
Software
Operating SystemAndroid 11
Upgradable Operating SystemAndroid 16
Touchscreen Information
TouchscreenYes
Multi-touch ScreenYes
Memory
Flash Memory64 GB
Standard Memory6 GB
Memory Card SupportedmicroSD
Battery Information
Battery ChemistryLithium Ion (Li-Ion)
Battery Capacity3800 mAh
Battery IncludedYes
Removable BatteryYes
Camera
Rear CameraYes
Rear Camera Resolution16 Megapixel
Front CameraYes
Front Camera Resolution5 Megapixel
Technical Information
Brightness450 cd/m²
Connectivity TechnologyWireless
FeaturesWater Resistant
Gorilla Glass
Push-to-talk
Sensor TypeeCompass
Proximity
Motion Sensor
Magnetometer
Accelerometer
Gyroscope
Light Sensor
Scanner RangeAdvanced Range
Drop Specification
    • Multiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective boot per MIL-STD-810H
    • Multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp (-10° C to 50° C/14° F to 122° F) per MIL-STD 810H
Google Mobile Services (GMS)Yes
Scan Engine ModelSE55
Scanning Capability2D
1D
Display & Graphics
Screen Resolution1080 x 2160
Screen Size6"
Screen ModeFull HD+
Display Screen TypeLED
Processor & Chipset
Processor Speed2.10 GHz
Processor Model5430
Processor CoreHexa-core (6 Core)
Processor ManufacturerQualcomm
Network & Communication
BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth StandardBluetooth 5.2
Near Field Communication (NFC)Yes
Physical Characteristics
Form FactorPhone-size
Height165.1 mm
Width76.2 mm
Depth12.4 mm
RuggedYes
Weight (With Battery)236 g
General Information
Product TypeHandheld Terminal
Manufacturer Part NumberWLMT0T22B6CBC2A6
Manufacturer Website Addresshttp://www.zebra.com/ap/en.html
ManufacturerZebra Technologies Corporation
Product ModelTC22
Product NameTC22 Handheld Terminal
Brand NameZebra
Miscellaneous
Application/UsageRetail
Field Sales/Service
Direct Store Delivery (DSD)
Warehouse
Package Contents
  • TC22 Handheld Terminal
  • Standered battery
Environmentally FriendlyYes
TAA CompliantYes
Ingress Protection (IP) RatingIP65
IP68
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
