- Audio InterfacePCI Express
- Audio PerformanceOutput Signal-to-Noise Ratio (A-Weighted):
116 dB
Input Signal-to-Noise Ratio (A-Weighted) :
110 dB
Output THD+N at 1kHz (Front-out) :
0.00251 %(-92 dB)
Input THD+N at 1kHz :
0.00251 %(-92 dB)
Frequency Response (-3dB, 24bit/192KHz input) :
10 Hz to 87 KHz
Output/Input Full-Scale Voltage :
Headphone output : 2 Vrms (5.65 Vp-p) - ChipsetAudio Processor :C-Media USB2.0 6620A High-Definition Sound Processor (Max. 192KHz/24bit)
- Digital-to-analog Converter(DAC)Realtek S1220A (120dB SNR, Max. 192KHz/24bit)
- Sample Rate and ResolutionAnalog Playback Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
Analog Recording Sample Rate and Resolution :
44.1K/48K/96K/192KHz @ 16bit/24bit
S/PDIF Digital Output :
44.1K/48K/96K/192KHz @ 16bit/24bit
ASIO 2.2 Driver Support :
44.1K/48K/96K/192KHz @ 16bit/24bit - ConnectivityAnalog Output
3 x 3.5 mm jack (1/8") (Front out/Side out/Rear out)
Analog Input
1 x 3.5 mm jack (1/8") (Line-in/Mic-in)
Digital
1 x S/PDIF out (1 x Optical (Toslink)) - Special FeaturesSmart Volume Normalizer™
Xear 3D™ Virtual Speaker Shifter
Xear Surround™
Magic Voice™ - Operating SystemWindows® 10
Windows® 8.1
Windows® 7 - AccessoriesLow-profile bracket x 1
Driver CD x 1
Quick start guide x 1
Asus Xonar Se Pcie 5.1 Analog In/out 3.5 Mm Jack (front) 2x Analog Out 3.5mm Jack(side/center)
SKU
270303
Brand
MPN
XONAR SE
Warranty
Standard Manufacturer's Warranty
$68.00
Buy Now And Earn 68 Reward Points!
QUICK OVERVIEW
S/PDIF OUT XONAR SE
ASUS Xonar SE 5.1 Channel 192kHz/24-bit Hi-Res 116dB SNR PCIe Gaming Sound Card with Windows 10 compatibility
- 5.1 channel, 192kHz/24-bit Hi-Res audio with a 300ohm headphone amp for detailed, immersive sound with punchy, defined bass
- Realtek ALC1220X codec delivers a crystal clear 116dB signal-to-noise ratio (SNR)
- ASUS Hyper Grounding Technology ensures minimal audio distortion and interference
- Xonar Audio Center enables full audio control via an intuitive, spacious interface
- Included Low Profile Bracket allows the Xonar to fit perfectly into most systems
Sharpen your hearing. Dominate all
Xonar SE is a PCIe gaming sound card built with high-quality components to satisfy gamers who demand exceptional sound for the best gaming and multimedia experiences. Xonar SE delivers 5.1-channel, 192kHz/24-bit hi-res audio output with a high 116dB signal-to-noise ratio (SNR), and comes with a built-in 300ohm headphone amplifier that provides rich, detailed sound and defined bass.
Immersive audio optimized for gaming
Enjoy 192kHz/24-bit hi-res audio in cinematic, 5.1-channel surround
With up to 5.1-channel output and support for 192kHz/24-bit hi-res audio, Xonar SE lets you enjoy truly cinematic sound while gaming, watching movies and listening to music.
116dB signal-to-noise ratio (SNR)
Xonar SE delivers an exceptional audio signal with a 116dB signal-to-noise ratio (SNR) for 32-times greater clarity than average onboard audio chips.
Integrated headphone amplifier reveals every audio detail
Since many gamers choose to play wearing headphones, Xonar SE features a high-quality, 300ohm headphone amplifier that delivers detailed, immersive sound with punchy, defined bass.
Exclusive sound-insulation technology
Hyper Grounding technology
Exclusive ASUS Hyper Grounding PCB fabrication ensures strong signal insulation to reduce distortion and interference, also known as component crosstalk.
Handy audio controls
Take complete control with Xonar Audio Center
Xonar SE features the Xonar Audio Center software suite for full control over every aspect of sound, from equalization (EQ) to 5.1-speaker level-balancing, and provides a user-friendly experience via an inviting and intuitive interface.
Works perfectly with Windows 10
Xonar SE is fully compatible with Windows 10 and features Windows Hardware Quality Labs (WHQL) support, ensuring a great audio experience with minimal setup hassles.
![](https://www.asus.com/websites/global/products/E6oMTLITMWBpsgmZ/img/audio-control_B.png)

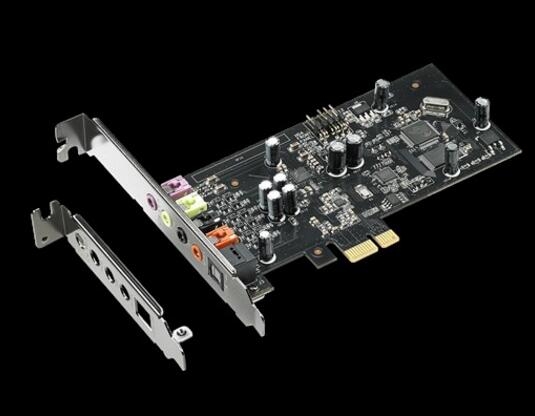

Bundled low-profile bracket to fit a mini chassis
Xonar SE is only half the height of regular cards, so it comes with an interchangeable metal bracket to fit smaller cases.
