DESCRIPTION

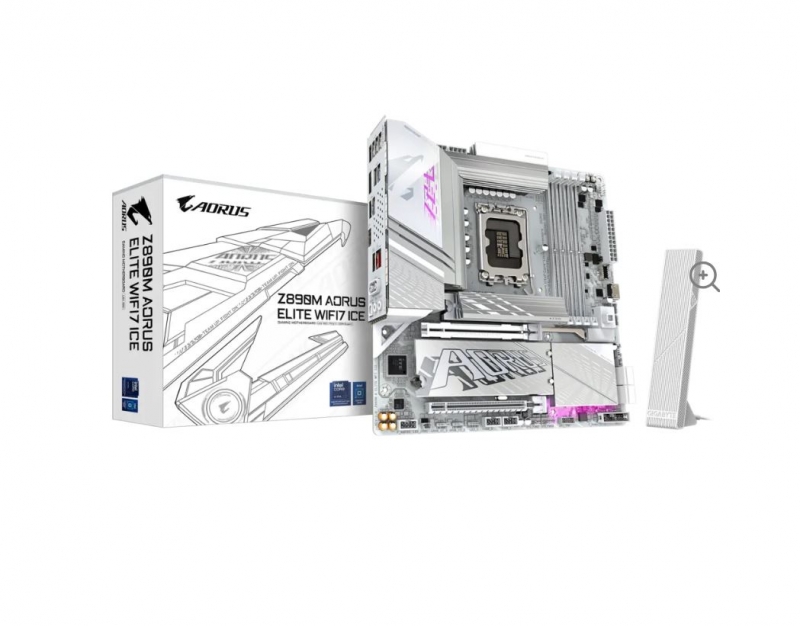

Gigabyte Z890M A ELITE WF7 ICE Intel LGA 1851 m-ATX Motherboard, 4x DDR5 ~256GB, 2x PCI-E x16, 3x M.2, 4x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0

Specification:

CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors
L3 cache varies with CPU

Chipset
Intel® Z890 Express Chipset

Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard

Back Panel Connectors
1 x USB4® USB Type-C® port (DisplayPort(Note))
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
